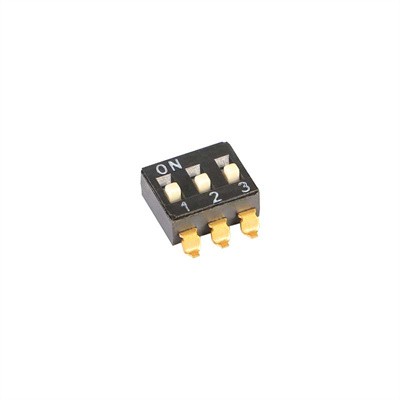

3 Way SMT DIP Switch

The 3 Way SMT DIP Switch with raised actuator represents a cutting-edge surface-mount switching solution, meticulously designed to meet the demands of applications that require precise 3-position configuration while harnessing the efficiency of Surface Mount Technology (SMT). As a specialized variant within the SMT DIP switch family, it not only inherits the core benefits of automated assembly but also features two distinctive attributes—a compact 3-way (3-position) design and a raised actuator—making it an indispensable component for electronics requiring streamlined, reliable parameter selection.

The 3-position architecture of this switch is engineered for optimized functionality. In contrast to multi-pin DIP switches, it simplifies configuration for tasks such as mode switching (e.g., "normal/standby/test" modes in industrial sensors), voltage level selection (e.g., 3.3V/5V/12V in IoT modules), or signal path routing. By eliminating the complexity associated with unused pins, it can reduce PCB space consumption by up to 40% compared to 6-way or 8-way alternatives. The raised actuator, which stands 1.5mm to 2.2mm above the PCB, is a key design innovation. This feature enables effortless tactile identification and operation, even for technicians wearing gloves—a common requirement in industrial and automotive environments. The distinct "click" feedback provided by the actuator ensures unambiguous operation, effectively addressing the challenge of confirming position changes in flat-surface switches.
