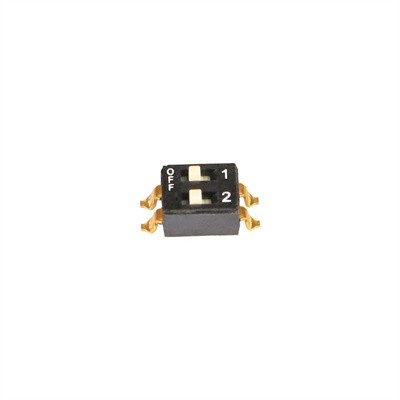

Surface Mount DIP Switch

The Surface Mount DIP Switch with raised actuator is an innovative variant of Dual Inline Package (DIP) switches, combining the configurability of traditional DIP switches with the assembly efficiency of Surface Mount Technology (SMT)—filling a critical gap between standard DIP switches and SMD tact switches. Unlike conventional DIP switches (often through-hole mounted) or low-profile SMD tact switches, its defining feature is the raised actuator: a protruding, tactile-operated lever or button designed for intuitive, error-resistant manual toggling, making it ideal for scenarios requiring on-site configuration without specialized tools.

As a surface-mount component, this switch integrates seamlessly with automated SMT assembly lines, eliminating the need for manual through-hole soldering and reducing production costs by up to 30% compared to traditional DIP switches. Its dual inline package design retains the classic "switch bank" structure (common pin counts: 2 to 12 positions), allowing multi-channel parameter setting—for example, encoding device addresses, adjusting signal thresholds, or enabling/disabling functional modules—with a single component. The raised actuator enhances operability: its tactile feedback (a crisp "click" during toggling) and visible protrusion prevent accidental misconfiguration, a key advantage over flat-surface SMD switches where actuation positions are hard to distinguish.

In terms of performance, it meets industrial-grade reliability standards: gold-plated contacts ensure low contact resistance (<50mΩ) and corrosion resistance, supporting stable operation in harsh environments . Typical applications include IoT gateways (for network protocol selection), automotive infotainment systems (for feature locking), industrial sensors (for calibration parameter adjustment), and medical devices (for safe mode setting)—scenarios where both SMT compatibility and user-friendly manual configuration are essential. Unlike SMD tact switches (focused on momentary signal triggering), this switch provides latching, persistent configuration, making it a complementary solution for systems needing both temporary interaction (via tact switches) and long-term parameter locking (via DIP switches).

By merging SMT efficiency, raised actuator usability, and DIP switch configurability, the Surface Mount DIP Switch with raised actuator has become a go-to component for modern electronics balancing automation demands and on-site adjustability.
