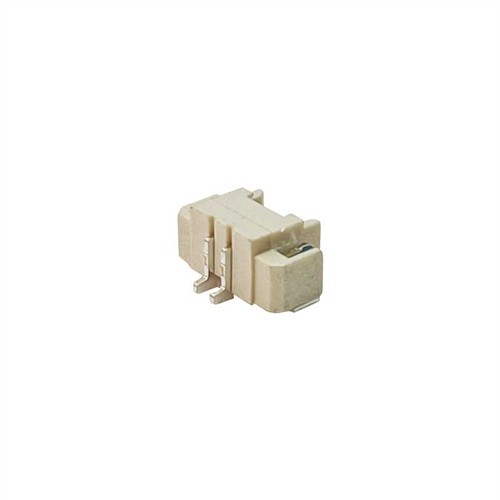

1.25mm Wafer SMT Connector

the 1.25mm wafer SMT connector offers a compact, reliable, and high-density interconnect solution for a wide range of electronic devices and applications, where space-saving and efficient assembly are paramount considerations.

EMAIL

The 1.25mm wafer SMT connector is a compact and versatile electrical connector designed for surface mount applications in electronics manufacturing, the 1.25mm wafer SMT connector offers a compact, reliable, and high-density interconnect solution for a wide range of electronic devices and applications, where space-saving and efficient assembly are paramount considerations.

Here are the specifications typically associated with this type of connector:

1. Pitch:

  • The connector features a pitch of 1.25mm, indicating the distance between the centers of adjacent terminals. This pitch allows for high-density mounting of components on a printed circuit board (PCB), enabling space-efficient designs.

2. Number of Contacts:

  • The connector is available in various configurations, including different numbers of contacts. Common options range from a few contacts to dozens or more, depending on the specific application requirements.

3. Termination Style:

  • This connector utilizes Surface Mount Technology (SMT) for termination. SMT connectors have solderable terminals or pads that directly attach to the surface of the PCB during assembly, eliminating the need for through-holes and enabling automated assembly processes.

4. Contact Material:

  • Contacts within the connector are typically made from materials such as phosphor bronze or beryllium copper, chosen for their conductivity, durability, and resistance to wear and corrosion.

5. Insulation Material:

  • The connector housing is commonly made from a durable thermoplastic material, such as nylon or polyester, providing electrical insulation and mechanical support for the contacts.

6. Operating Temperature Range:

  • The connector is designed to operate within a specified temperature range, ensuring reliable performance under various environmental conditions. Typical operating temperatures range from -40°C to +105°C or higher, depending on the specific connector design and materials used.

7. Current and Voltage Ratings:

  • The connector is rated for a certain maximum current and voltage, ensuring safe operation within specified electrical parameters. Ratings may vary depending on factors such as contact size, material, and configuration.

8. Mounting Style:

  • The connector is intended for surface mounting onto the PCB, providing a low-profile and space-saving solution for interconnecting electronic components and circuits
