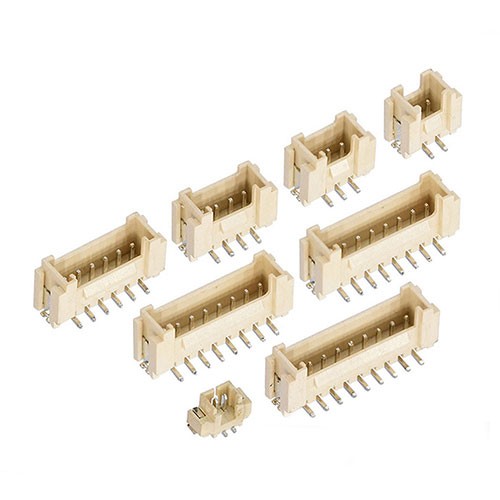

Wafer Housing Terminal

A wafer housing terminal is an electronic component that provides a secure and reliable connection between a semiconductor device or wafer and its external circuitry. It is designed to house and protect the wafer while providing a reliable interface for electrical signal transmission. A wafer housing terminal is typically made of a conductive material such as copper, gold, or nickel and can be found in various shapes and sizes.

The wafer housing terminal comprises of several components, including the wafer holder, spring probe, and a contact pad. The wafer holder is designed to securely hold and protect the semiconductor wafer, and it usually features a vacuum port that allows for secure mounting of the wafer. The spring probe, on the other hand, provides the electrical contact between the wafer and external circuitry. The probe is typically made of a thin, flexible wire that is designed to make a secure contact with the wafer. Finally, the contact pad is the part of the terminal that connects the spring probe to the external circuitry.

The wafer housing terminal is an essential component of many semiconductor manufacturing processes. It allows for the efficient and reliable transfer of electrical signals between the semiconductor wafer and the rest of the electronic system. Without this critical element, the wafer would be vulnerable to damage during the manufacturing process, leading to reduced performance and reliability in the final product.

There are many different types of wafer housing terminals available, each with its unique advantages and disadvantages. Some are designed for high-speed signal transfer, while others are optimized for low power consumption. Some wafer housing terminals are designed for specific applications or manufacturing processes, while others are general-purpose and more versatile.

In conclusion, the wafer housing terminal is a critical electronic component used in the manufacturing of semiconductor devices. It provides a reliable and secure interface between the wafer and external circuitry, allowing for efficient and effective signal transfer. There are many different types of wafer housing terminals available, each with its unique advantages and disadvantages, making it essential to select the right one for specific applications or manufacturing processes.

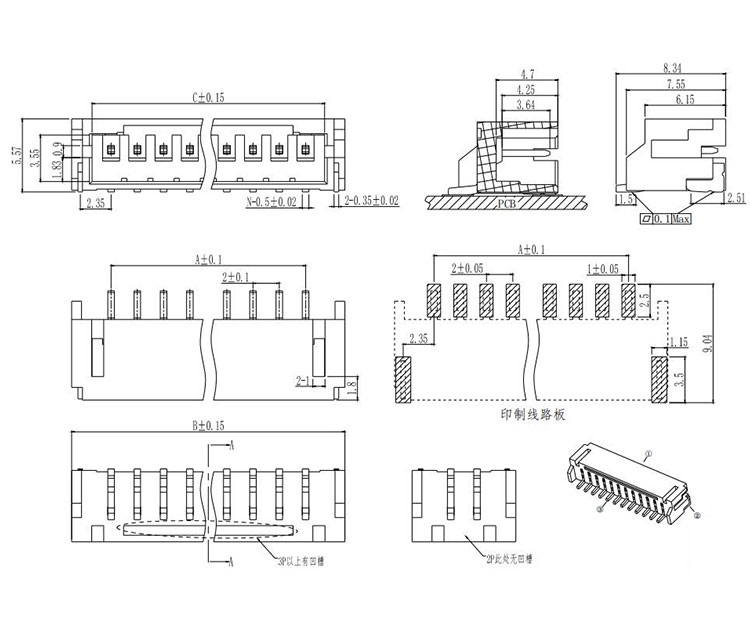

PRODUCT DIMENSION

PRODUCT CATEGORY

illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

COMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
