10 Way SMT DIP Switch

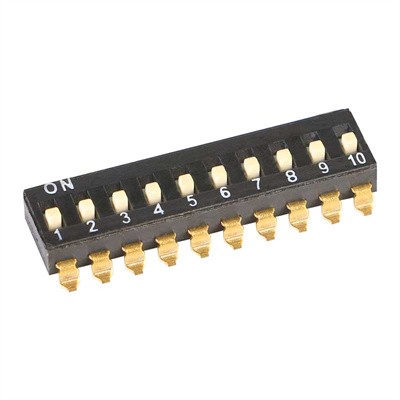

The 10-way SMT DIP switch (Surface Mount Technology Dual In-line Package switch) is a compact, high-precision electromechanical component designed for discrete circuit configuration, widely used in electronic systems requiring flexible parameter adjustment. As a member of the DIP switch family, it features 10 independent switch units integrated into a single SMT-compatible package, making it ideal for space-constrained PCB (Printed Circuit Board) designs.

Structurally, the 10-way SMT DIP switch adopts a dual in-line layout, with each switch unit (often a slide or toggle type) corresponding to two solder pads for surface mounting—this eliminates the need for through-holes, simplifying PCB manufacturing and reducing assembly time. Each unit operates independently: flipping a switch to the "ON" position closes the circuit, while "OFF" opens it, allowing users to set 2¹⁰ (1,024) unique binary states—sufficient for encoding addresses, configuring functional modes, or enabling/disabling system features.

In terms of performance, it typically supports operating voltages from 5V to 24V and current ratings of 10mA to 100mA, with a long mechanical lifespan (up to 10,000 operations) and stable contact resistance (usually <50mΩ). Its compact size (common pitch: 2.54mm or 1.27mm) suits miniaturized devices like industrial controllers, IoT modules, consumer electronics (e.g., audio equipment), and automotive electronics, where reliable, on-site configuration is critical.

Unlike through-hole DIP switches, the SMT version adheres closely to PCB surfaces, enhancing shock and vibration resistance—essential for harsh environments. Overall, the 10-way SMT DIP switch balances flexibility, compactness, and durability, serving as a cost-effective solution for electronic system customization.
