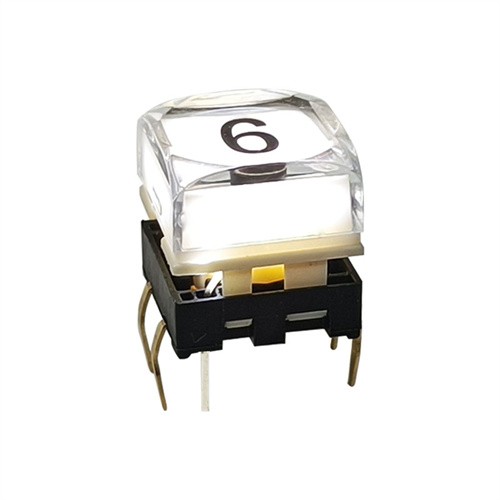

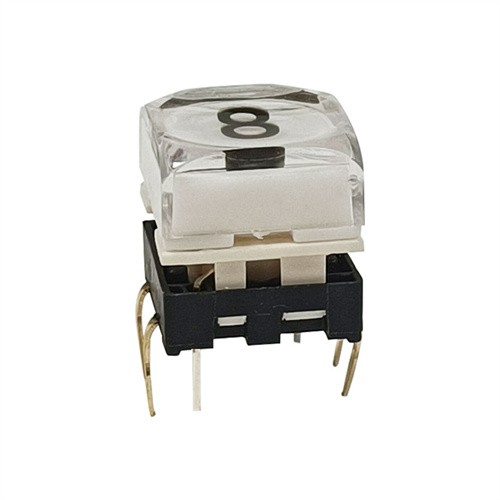

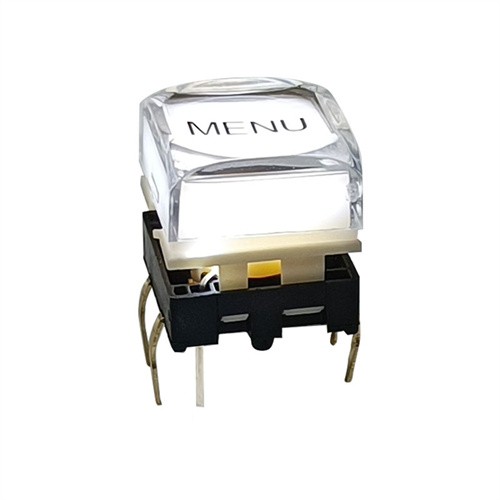

12*12MM Illuminated Tact Button

The design of the 12*12mm illuminated tact button is simple and efficient.


The design of the 12*12mm illuminated tact button is simple and efficient. The switch is composed of several key components, including the base, the plunger, and the contacts. The base of the button is made of a high-quality plastic material that is durable and robust. The plunger is located above the base and is designed to be pressed down when the button is activated. Finally, the contacts are the key electrical components that are responsible for conducting the electrical signal from the switch to the connected device.


One of the key features of the 12*12mm illuminated tact button is the LED illumination. The LED is integrated into the plunger of the switch, and it is designed to provide bright and even illumination when the switch is activated. The LED is powered by a low voltage supply, and it has a long lifespan of around 50,000 hours.

Actuation Force

The actuation force of the 12*12mm illuminated tact button is a key aspect that determines the ease of use of the switch. The button is designed to require a fairly low actuation force of around 160g. This makes it easy to press the button and activate the switch, which is particularly useful in industrial settings where workers may be wearing gloves or other types of protective equipment.


Durability is an important aspect of any switch, and the 12*12mm illuminated tact button is no exception. The switch is designed to be highly durable and robust, with a lifespan of around 500,000 cycles. This makes it ideal for use in applications that require frequent and intensive use.

                                         Model                   TS15-9W56WTW-6
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   12.0*12.0*13.1mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS
