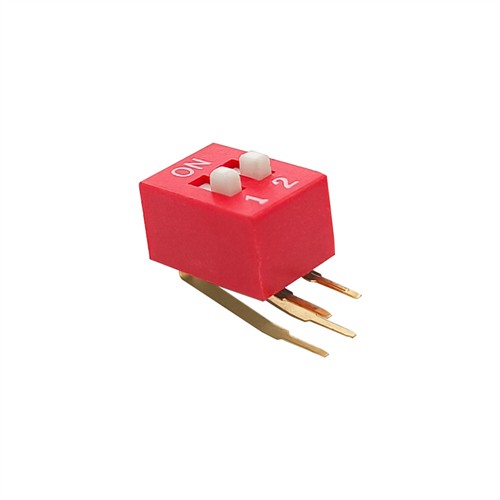

2 Way Right Angle DIP Switch

The Vertical Right Angle DIP Switch is a specialized type of switch that combines the convenience of a dual in-line package (DIP) with the flexibility of a right-angle mounting orientation. This switch is designed for applications where space is limited, but multiple, manual configuration options are needed. The vertical right angle DIP switch offers a compact solution for adjusting settings, addressing configurations, or toggling functions within a circuit or system, making it an indispensable component for electronic devices that require user-controlled configuration.

pace-Saving Design (Primary Advantage)

• Horizontal Space Maximizer: Mounts perpendicular to PCB surface, freeing up critical horizontal real estate for other components

• Vertical Profile Optimization: Body sits parallel to the board, ideal for devices with height restrictions

• Density Enhancement: Enables higher component packing in handheld gadgets, portable instruments, and consumer electronics

• Layout Flexibility: Creates design options where standard DIP switches would be impractical

Installation & Usability Benefits

• Side-Access Actuation: Slider moves perpendicular to PCB, allowing easy adjustment even in tight enclosures

• Ergonomic Operation: Clear tactile feedback confirms switch position, reducing setup errors

• Through-Hole Reliability: Robust mechanical and electrical connection via soldered pins

• Visual Position Confirmation: Easy-to-see slider positions for quick status checks

• Washable Options: Available with process-sealed designs for post-solder cleaning compatibility

Versatility & Configuration

• Multiple Pole Options: Available in 1-12 positions, enabling 2ⁿ configuration possibilities (e.g., 8-position = 256 unique settings)

• SPST Functionality: Each switch acts as an independent Single-Pole, Single-Throw circuit controller

• Non-Volatile Settings: Retains configuration when power is removed—no software or battery backup needed

• Cost-Effective Customization: Affordable alternative to software programming for hardware configuration

• No Programming Required: Changes settings without technical expertise or special tools

Application-Specific Advantages

• Industrial Control: Perfect for address coding, mode selection, and calibration in automation equipment

• Consumer Electronics: Ideal for IoT devices, wearables, and small appliances requiring hidden configuration

• Test & Measurement: Enables quick setup changes in diagnostic tools and instrumentation

• Telecommunications: Used for line coding and feature activation in network equipment

• Medical Devices: Offers reliable, sterile configuration options for critical equipment

Why Choose Vertical Right Angle Over Standard DIP?

These DIP switches deliver the perfect balance of space efficiency, ease of use, and reliable performance—essential for modern electronic designs where every millimeter counts.

These durability features make the vertical right angle DIP switch ideal for use in both consumer and industrial devices where reliability is essential.
