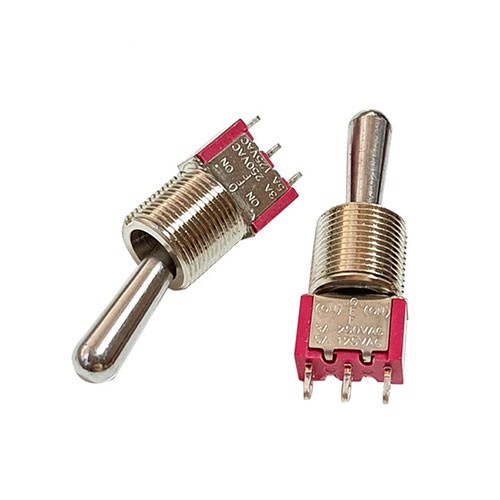

3 Position 2 Pole Toggle Switch

An on-off-on mini toggle switch works by using a metal lever that moves a metal contact between three positions

EMAIL

An on-off-on mini toggle switch works by using a metal lever that moves a metal contact between three positions. The lever is attached to a spring that keeps it in place when it is not being moved. When the lever is moved to the first "on" position, it closes the circuit by connecting the two metal contacts. When the lever is moved to the "off" position, the metal contact breaks the connection between the two contacts. When the lever is moved to the second "on" position, it connects the two contacts again and the circuit is closed.

PRODUCT PROFILE
                                         Model                   TG-8014-Z1BQ-H
                                         Product Item                   Toggle Switch
                                         Switch Function                   ON-OFF-ON
                                         Stem Options                   Red/Blue/Black/Brown
                                         Type                   Right Angle
                                         Function                   Momentary
                                         Rating
                   0.1A 12VDC
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

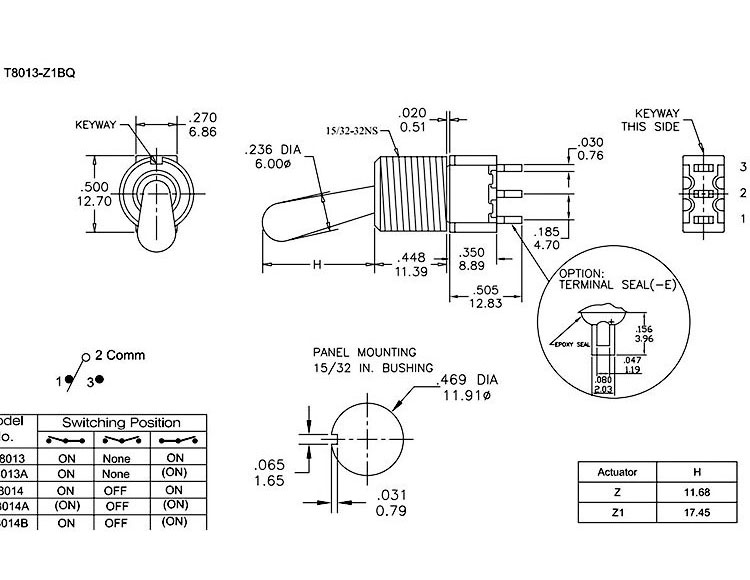

PRODUCT DIMENSION


PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


aPPLICATIONS

Applications of Subminiature Toggle Switches

Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:

1. Portable electronic devices

Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.

2. Amplifiers

Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.

3. Automotive applications

Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.

4. Industrial applications

Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
