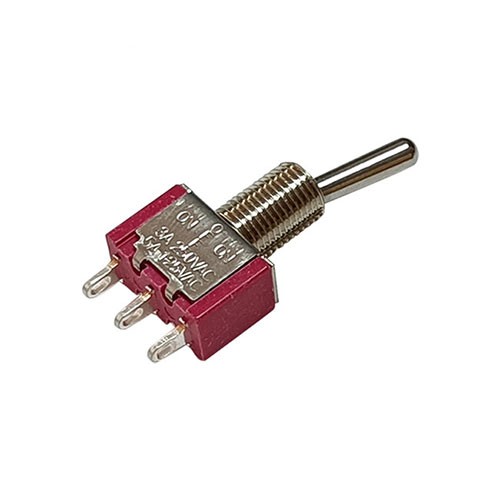

An on-off-on mini toggle switch works by using a metal lever that moves a metal contact between three positions
A mini toggle switch is a type of switch that is used to turn a circuit on or off. These switches are often found in electronic devices such as amplifiers, guitars, and lighting systems. One type of mini toggle switch is the on-off-on mini toggle switch. This switch has three positions: on, off, and on. Here is a closer look at the on-off-on mini toggle switch, how it works, and where it can be used.
What is an on-off-on mini toggle switch?
As the name suggests, an on-off-on mini toggle switch has three positions: on, off, and on. When the switch is in the first "on" position, the circuit is closed and electricity can flow through it. When the switch is in the "off" position, the circuit is open and no electricity can flow through it. When the switch is in the second "on" position, the circuit is closed again.
How does an on-off-on mini toggle switch work?
An on-off-on mini toggle switch works by using a metal lever that moves a metal contact between three positions. The lever is attached to a spring that keeps it in place when it is not being moved. When the lever is moved to the first "on" position, it closes the circuit by connecting the two metal contacts. When the lever is moved to the "off" position, the metal contact breaks the connection between the two contacts. When the lever is moved to the second "on" position, it connects the two contacts again and the circuit is closed.
|Product Item||Toggle Switch|
| Rating||0.1A 12VDC|
| Payment||T/T 100% in advance|
| Delivery||15-20 workdays|
|Shippment||DHL/ FedEx /UPS|
Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
Applications of Subminiature Toggle Switches
Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:
1. Portable electronic devices
Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.
Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.
3. Automotive applications
Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.
4. Industrial applications
Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology
We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.
Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
Add: Taoyuan Street, Nanshan, Shenzhen
