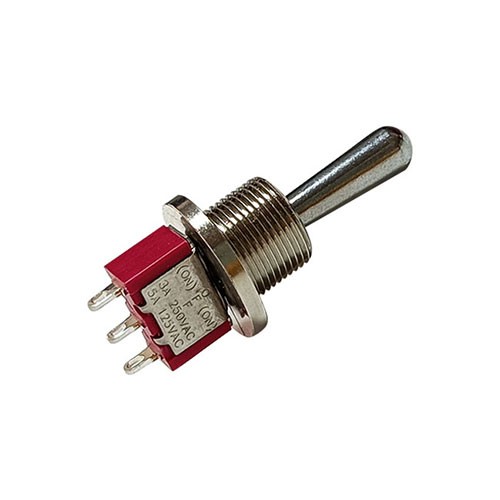

3 Position Mini Toggle Switch

3-pin toggle switches are used in many different applications


A 3-position mini toggle switch is a type of switch that has three different positions or states. It is a small switch and is commonly used in electronic devices for the purpose of controlling various functions or features. The switch has three pins that can be connected to various components of the circuit, and its position determines which components are connected and which are not.

The three positions of the switch are usually referred to as ON, OFF, and ON. In its ON position, the switch connects two pins, allowing current to flow through the circuit. In its OFF position, the switch disconnects the pins, breaking the circuit and preventing current flow. And in its other ON position, the switch connects the other two pins, creating a different circuit and allowing current to flow through different components.

One example of how a 3-position mini toggle switch can be used is in a guitar or bass. The switch can be used to select between different pickups or to switch between different tone settings. In a guitar with two pickups, the switch could be used to select the neck pickup in the first ON position, turn the pickups off in the OFF position, and select the bridge pickup in the second ON position.

Another use of a 3-position mini toggle switch is in electronic devices such as radios or computers. The switch can be used to turn on or off specific components of the device or to select between different modes or settings. For example, a computer might have a switch that can be used to select between different power modes, such as high-performance mode, balanced mode, or power-saving mode.

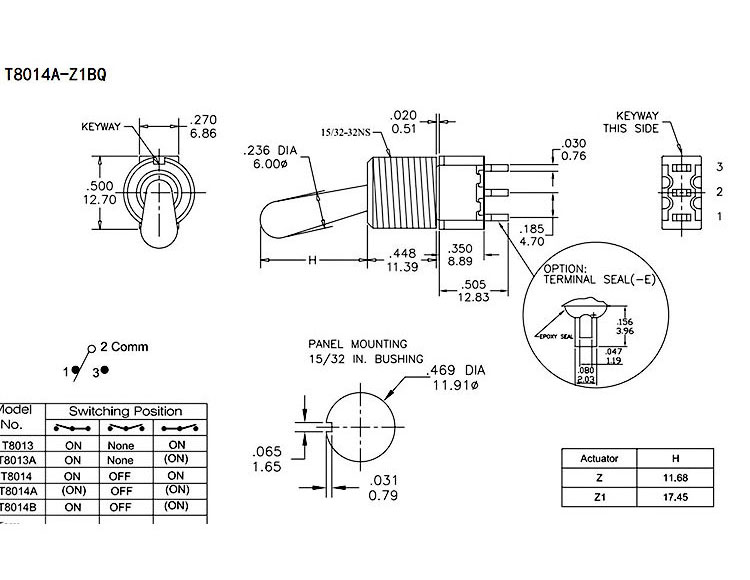

                                         Model                   TG-8014A-Z1WBQ-H
                                         Product Item                   Toggle Switch
                                         Switch Function                   (ON)-OFF-(ON)
                                         Stem Options                   Red/Blue/Black/Brown
                                         Type                   Right Angle
                                         Function                   Momentary
                   0.1A 12VDC
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Applications of Subminiature Toggle Switches

Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:

1. Portable electronic devices

Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.

2. Amplifiers

Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.

3. Automotive applications

Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.

4. Industrial applications

Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
