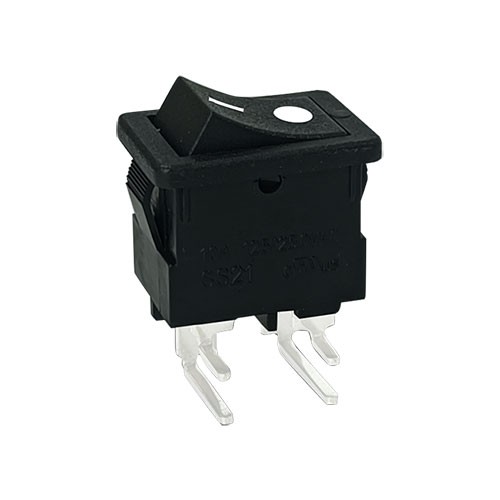

Right Angle Rocker Switch

A right-angle rocker switch with 4 pins is a type of switch commonly used in electronic devices where the switch needs to be mounted perpendicular to the PCB. This design allows for compact and efficient use of space, making it suitable for applications where space is limited.

The 4 - pin right - angle rocker switch is a specialized electrical component that combines the unique spatial advantages of right - angle mounting with enhanced functionality enabled by its four - pin configuration. This switch type is designed to meet the demands of complex circuit control scenarios while optimizing space utilization in printed circuit board (PCB) designs and other electrical systems.

Structure and Design

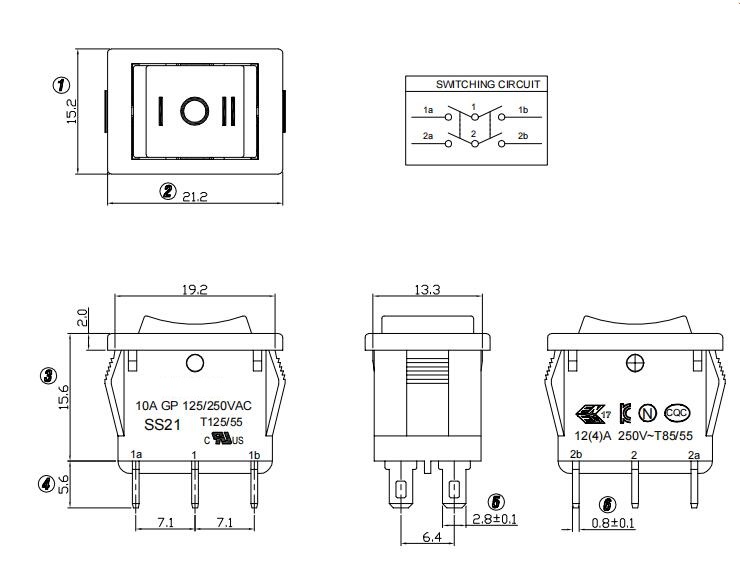

As the name implies, the most distinctive feature of this switch is its right - angle pin orientation. The four connection pins are bent at a 90 - degree angle relative to the switch body, allowing for perpendicular mounting on a PCB. This design significantly reduces the vertical space occupied by the switch, making it an ideal choice for applications where component height is a constraint, such as in slim - profile consumer electronics, compact control modules, or densely populated circuit boards.

The switch body itself is typically constructed from durable materials like high - impact plastic or metal, providing robust protection for the internal components. On the surface, it features a rocking lever, which serves as the user - interaction element for controlling the electrical circuits. Inside, the switch houses a set of electrical contacts and a mechanical linkage system that work in tandem with the rocking motion to manage the flow of electricity.

Components of a Right-Angle Rocker Switch (4-Pin)

1. Rocker Actuator: The part of the switch that the user toggles between two positions (on and off).

2. Housing: The outer shell that encases the internal components.

3. Terminals/Pins: Four pins that provide connections for wiring the switch into a circuit.

4. Right-Angle Design: The terminals are bent at a right angle, allowing the switch to be mounted perpendicular to the PCB.
