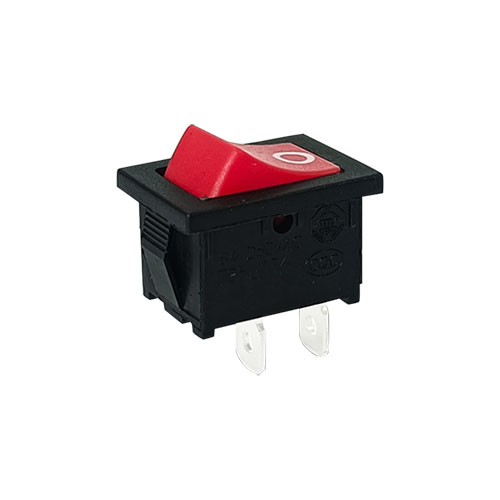

SPST Red Rocker Switch

The SPST 2 Pin Rocker Switch is a fundamental electrical component known for its simplicity, reliability, and versatility. Its design allows for easy on/off control of electrical circuits, making it suitable for a wide array of applications, from household appliances to industrial equipment. With straightforward functionality, durable construction, and cost-effectiveness, this type of switch remains a staple in both consumer and industrial electronics.

A Single Pole Single Throw (SPST) Red Rocker Switch is a widely-used electrical component that serves as a simple on/off switch for various electrical devices and circuits. Its red color often indicates a specific function, such as power control or emergency shutoff, making it easy to identify. Here is an in-depth look at the SPST Red Rocker Switch, covering its design, functionality, applications, specifications, and significance.

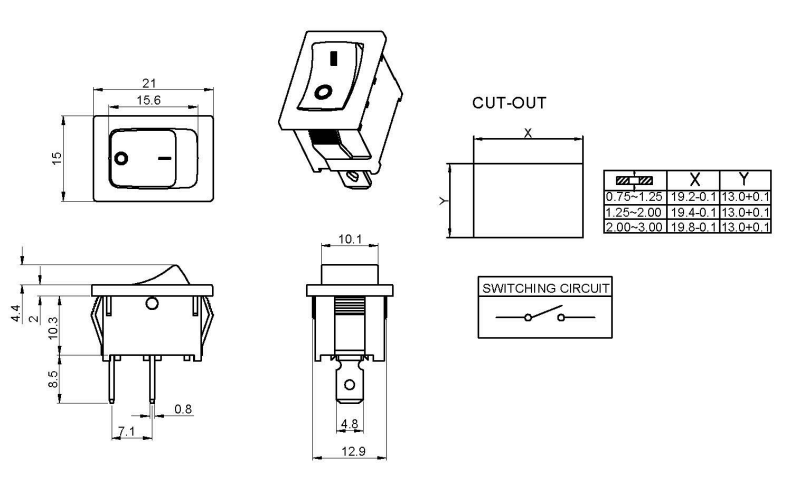

1.Basic Structure:

Single Pole Single Throw (SPST): This configuration means the switch has one input (pole) and one output (throw), and it simply opens or closes a single circuit.

2 Pin Configuration: The switch typically features two terminals or pins. One pin connects to the power source, while the other pin connects to the device or circuit being controlled.

2. Rocker Mechanism: Rocker Switch: Operates with a rocking action. Pressing one side of the rocker closes the circuit (turns the device on), while pressing the opposite side opens the circuit (turns the device off).

3. Materials: The outer casing is usually made of durable plastic, and the internal contacts are often made of conductive metals such as copper or brass.

4. Color and Visibility: Red Color: The red color is used for easy identification and can signify the importance of the switch, such as for power control or emergency use.

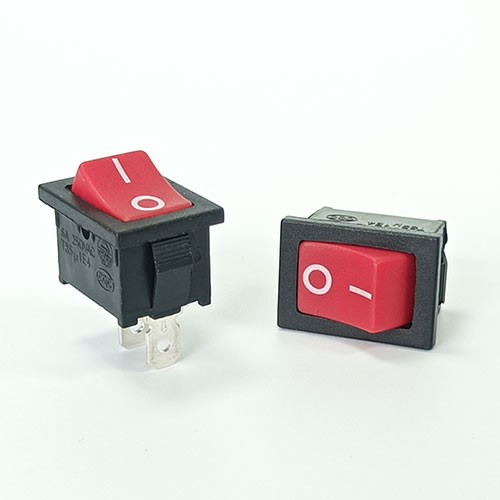

5. Physical Appearance: Compact and rectangular, the rocker is visibly marked to indicate the on/off positions, often with a "I" symbol for on and "O" symbol for off.

The SPST red rocker switch finds extensive use across multiple industries. In automotive applications, it is often used for critical functions such as emergency lights or engine cut - off switches. The red color immediately draws the driver's attention, ensuring quick access in urgent situations. In consumer electronics, it can be found in products like gaming consoles or high - end audio equipment, where the red switch adds a touch of style and provides a clear visual indicator of power status or specific functions.

In industrial settings, especially in control panels for machinery, the SPST red rocker switch can be used to control high - power circuits or functions that require special attention. The red color helps operators quickly identify important switches, reducing the chance of misoperation. Additionally, in DIY electronics projects and custom - built devices, the red rocker switch not only offers reliable functionality but also allows enthusiasts to add a personalized and visually appealing element to their creations.
