the ON-OFF-ON mini toggle switch is a versatile and reliable switch that is widely used in electronic devices and equipment.
A toggle switch is a mechanical switch that is used to turn electronic devices on and off by physically flipping a lever. These switches are commonly used in consumer electronics, automotive and marine industries, and other applications requiring a reliable and robust switch.
An ON-OFF-ON mini toggle switch is a type of toggle switch that has three positions - OFF, ON, and ON. This type of switch is commonly used in audio and guitar amplifier applications, where it is used to switch between different channels or modes.

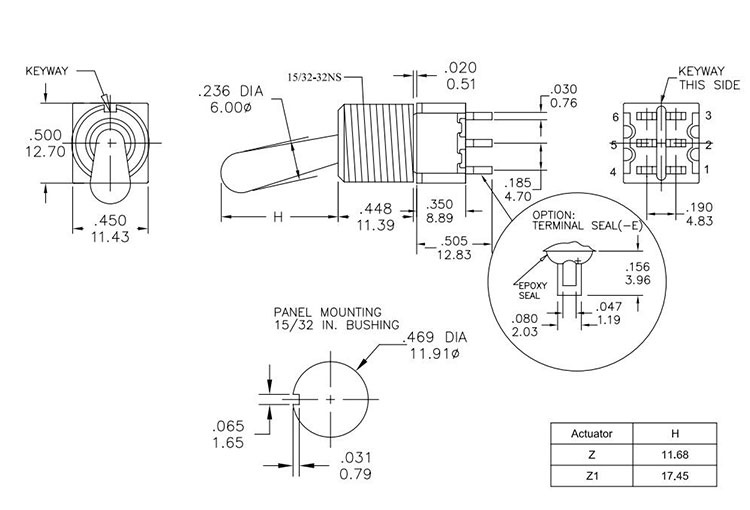

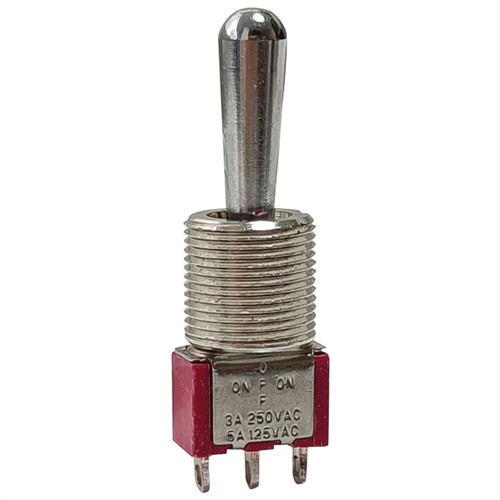

The ON-OFF-ON mini toggle switch is small in size, typically measuring around 10mm in diameter and 25mm in length. It features a cylindrical body with a threaded shaft and a lever that protrudes from the top of the switch. The switch is available in a variety of configurations, including SPDT (Single Pole Double Throw) and DPDT (Double Pole Double Throw).
The SPDT version of the ON-OFF-ON mini toggle switch has three terminals - a common terminal (C) and two output terminals (NO and NC). The switch is used to connect or disconnect the two output terminals with respect to the common terminal. When the lever is in the center position, the switch is technically "off", as both output terminals are disconnected from the common terminal. When the lever is flipped up, the NO terminal is connected to the common terminal, while the NC terminal is disconnected. When the lever is flipped down, the NC terminal is connected to the common terminal, while the NO terminal is disconnected.
The DPDT version of the ON-OFF-ON mini toggle switch has six terminals - two common terminals (C1 and C2), two NO terminals (NO1 and NO2), and two NC terminals (NC1 and NC2). The switch is used to connect or disconnect the NO and NC terminals with respect to their corresponding common terminals. When the lever is in the center position, both NO and NC terminals are disconnected from their respective common terminals. When the lever is flipped up, the NO1 and NC1 terminals are connected to their respective common terminals, while the NO2 and NC2 terminals are disconnected. When the lever is flipped down, the NO2 and NC2 terminals are connected to their respective common terminals, while the NO1 and NC1 terminals are disconnected.
In audio and guitar amplifier applications, the ON-OFF-ON mini toggle switch is commonly used to switch between different channels or modes. For example, in a guitar amplifier, the switch may be used to switch between a clean channel and an overdriven channel. In audio equipment, the switch may be used to select between different inputs or output modes.
Overall, the ON-OFF-ON mini toggle switch is a versatile and reliable switch that is widely used in electronic devices and equipment. Its small size and simple operation make it a popular choice for a wide range of applications.
|Product Item||Toggle Switch|
| Rating||0.1A 12VDC|
| Payment||T/T 100% in advance|
| Delivery||15-20 workdays|
|Shippment||DHL/ FedEx /UPS|
Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
Applications of Subminiature Toggle Switches
Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:
1. Portable electronic devices
Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.
Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.
3. Automotive applications
Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.
4. Industrial applications
Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology
We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.
Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
Add: Taoyuan Street, Nanshan, Shenzhen
