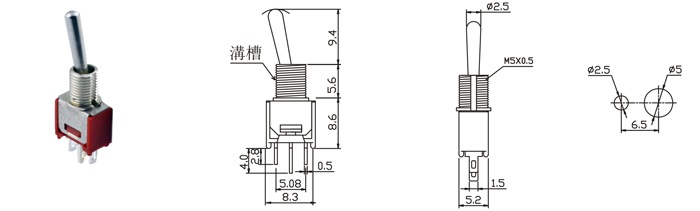

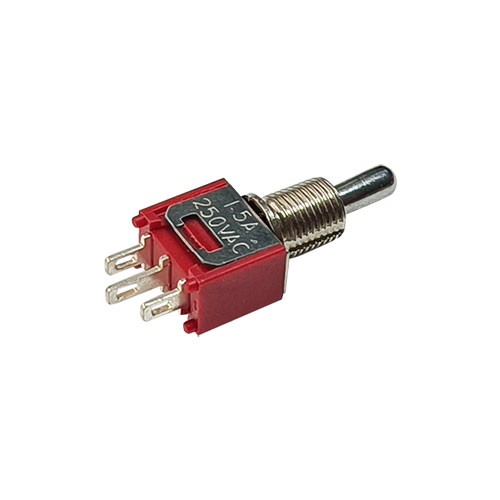

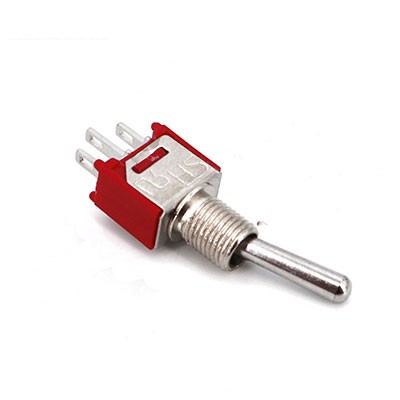

Two Position Toggle Switch

A subminiature toggle switch is an electrical switch that is small in size and designed to fit in compact spaces. It is also referred to as a miniature toggle switch because of its small size. The switch has a lever or a paddle, which can be moved up or down to turn the circuit on or off. It is used in a variety of applications in different industries, including consumer electronics, automotive, medical, and telecommunications.

The on-off subminiature toggle switch is one of the most common types of subminiature toggle switches. As the name suggests, the switch has two positions: on and off. When the switch is in the on position, it allows the current to flow through the circuit, and when it is in the off position, it interrupts the flow of current.

One of the primary advantages of the subminiature toggle switch is its small size, which makes it perfect for use in compact spaces where larger switches cannot fit. It is also lightweight, making it an ideal choice for portable electronic devices that require switches for power supply. The switch requires minimal force to toggle, making it easy to operate.

Subminiature toggle switches are a remarkable category of electrical components, renowned for their compact size and exceptional functionality. Measuring minuscule in dimensions, these switches are engineered to fit into the most confined spaces where traditional switches simply would not be feasible. Despite their small stature, they do not compromise on performance.

These switches typically feature a tiny toggle lever that, when actuated, toggles between different positions to open or close electrical circuits. They come in various configurations, such as single - pole single - throw (SPST), single - pole double - throw (SPDT), and more complex multi - pole arrangements. This versatility allows them to meet a wide range of electrical requirements.

Constructed with high - quality materials, subminiature toggle switches offer reliable operation. Their internal contacts are designed to ensure stable electrical connections, reducing the risk of signal interruptions or malfunctions. They can handle specific voltage and current ratings, making them suitable for both low - power and moderate - power applications.

Subminiature toggle switches find extensive use in numerous industries. In the realm of consumer electronics, they are integrated into devices like smartphones, smartwatches, and wireless earbuds, where space is at a premium. In the medical field, they are utilized in portable medical equipment, ensuring precise control while maintaining a compact design. Additionally, they play a crucial role in aerospace and automotive electronics, where their small size and reliable performance are highly valued.
