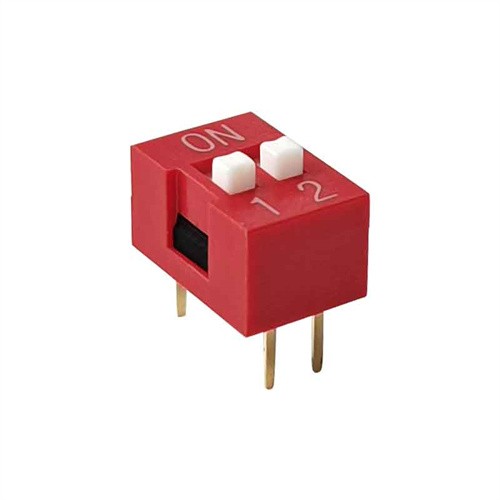

2 Way DIP Switch

A 2-way DIP switch is an electronic component that consists of a rectangular block with several tiny switches that can be toggled


A 2-way DIP switch is an electronic component that consists of a rectangular block with several tiny switches that can be toggled. It is commonly used in digital electronic circuits for selecting and configuring different operations of a device. The 2-way DIP switch is used in almost every type of electronic device, from toys to sophisticated machines.

The 2-way DIP switch is a small and durable component that is usually mounted on a printed circuit board (PCB). It is widely used because it is easy to implement, even for beginners in electronics. It is reliable and requires little maintenance, which makes it an ideal component for mass-produced electronic devices.

The 2-way DIP switch consists of several individual switches that are arranged in a DIP format. DIP stands for Dual Inline Package. The arrangement of the switches is such that they can be toggled to either the ON or OFF position. In other words, the DIP switch is a binary switch with two states: ON or OFF.

The two-way DIP switch has two rows of pins or legs, which are inserted into a PCB. These pins are either straight or angled at 90 degrees, depending on the application. The pins help in securing the DIP switch onto the printed circuit board.

The 2-way DIP switch is used in various electronic applications, including memory address decoding, data input selection, clock frequency selection, and digital circuit configuration. It is used to control the functionality of a device, such as a computer motherboard or a video game.

In summary, the 2-way DIP switch is an essential electronic component that is used in a wide range of applications. It is a reliable and straightforward device that is perfect for mass-produced electronic devices. Its versatility and ease of implementation make it indispensable in the world of digital electronics.
