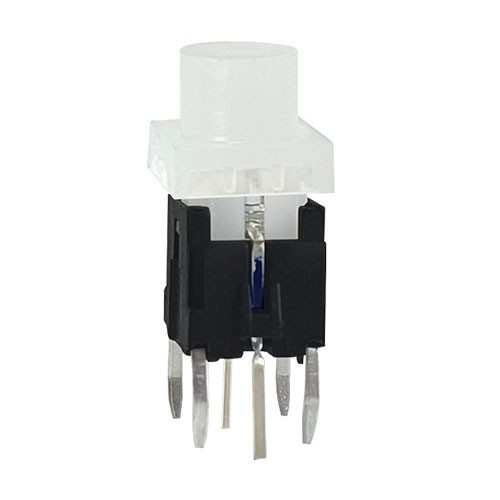

Illuminated Tact Switch With Clear Cap

The illuminated red LED tact switch with a 6.3mm clear cap is a compact and versatile component designed to provide tactile feedback and visual indication in a wide array of electronic applications.

The illuminated red LED tact switch with a clear cap is a highly functional and visually appealing component, perfect for a range of electronic applications. Its combination of tactile feedback, durability, and clear visual indication makes it an excellent choice for designers and engineers looking to enhance user interaction and interface design in their products.

The Tiny Led Tact Switch with a clear cap is a compact and versatile component designed to provide tactile feedback and visual indication in a wide array of electronic applications. This switch is particularly useful in environments where visibility and user interaction are crucial, offering a blend of functionality and aesthetic appeal.

Key Features

1. Illuminated Red LED: The switch integrates a red LED, providing a bright and clear visual indication of its status. This is particularly useful for signaling, status alerts, and user feedback in various applications.The led color is available with colorfulr led choices

2. Clear Cap Design: The clear cap allows the LED light to shine through effectively, enhancing visibility and making the switch stand out, especially in low-light conditions. It also adds a sleek and modern look to the device.

3. Tactile Feedback: Designed to deliver a distinct tactile response, this switch ensures a reliable and satisfying user experience. The tactile feedback confirms actuation with a noticeable click, making it suitable for precision control applications.

4. Compact and Versatile: With its small footprint, this tact switch is ideal for applications where space is limited. Its versatility allows it to be used in a range of electronic devices and control panels.

5. Durability: Constructed to withstand frequent use, the switch offers long-lasting performance, ensuring reliability over time. This durability is essential for applications requiring repetitive actuation.

The Miniature Led Tact Switch with a clear cap is a specialized electronic component that combines the tactile feedback of a traditional tact switch with the visual prominence of a red LED light, all encased within a transparent cover. This unique combination makes it a highly useful and versatile component across various applications.

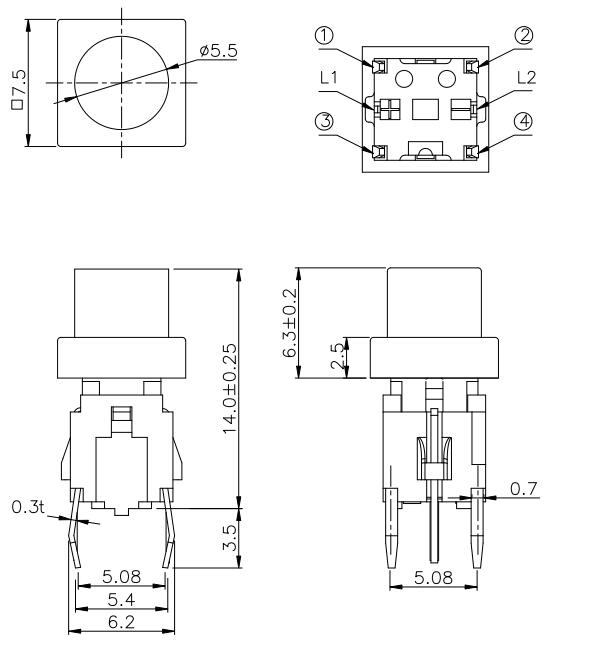

Physical Design

The Momentary Led Tact Switch features a compact and durable housing, typically made from high - quality plastic materials. The plastic is chosen for its strength, resistance to wear and tear, and insulation properties, ensuring the switch's longevity and safety. The clear cap, usually crafted from a transparent polycarbonate or acrylic, sits atop the switch. It provides a smooth, flat surface for users to press, while also allowing the red LED light to shine through unobstructed.

Beneath the clear cap lies the red LED, which is the centerpiece of the switch's illumination system. The LED is strategically positioned to maximize light output and ensure even distribution across the cap's surface. Some models may incorporate a light - diffusing element, such as a small diffuser plate or internal ridges, to further enhance the uniformity of the light and eliminate any hotspots.

The tactile mechanism of the switch is designed to provide a satisfying and distinct "click" sensation when pressed. A spring - loaded actuator, connected to internal electrical contacts, is responsible for this tactile feedback. When the user applies pressure to the clear cap, the actuator depresses, closing the electrical contacts and completing the circuit. Once the pressure is released, the spring returns the actuator to its original position, opening the circuit again.

Functionality

The primary function of this illuminated tact switches is, of course, to act as an electrical switch, allowing users to open or close a circuit as needed. However, the addition of the red LED greatly enhances its functionality. The red light serves as a powerful visual indicator, communicating important information to the user. For example, a steady - lit red LED might signify that a device is powered on or in an active state. In contrast, a flashing red LED could indicate an error, warning, or abnormal condition within the system.

In low - light environments or when quick identification of the switch's status is crucial, the illuminated red LED stands out prominently, making it easy for users to locate and understand the switch's function at a glance. This visual feedback is especially valuable in applications where safety and immediate response are essential, such as in industrial control panels or emergency stop buttons.
