DC Power Jack Plug

One of the main advantages of the DC jack power connector is its versatility. It can be used with a wide range of power sources, including AC adapters, batteries, solar panels, and other alternative power sources.

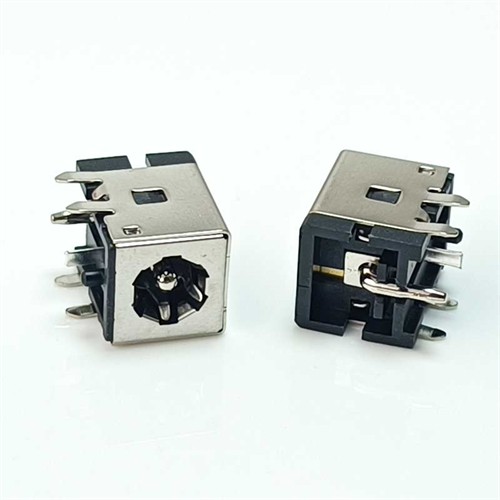

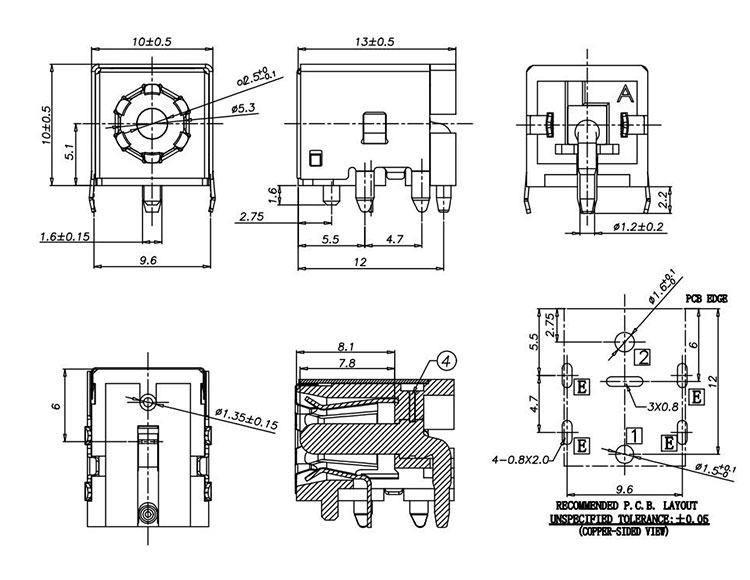

A shield DC power jack is a specialized electrical connector designed to enhance the performance and reliability of power connections in electronic devices by providing protection against electromagnetic interference (EMI) and radio - frequency interference (RFI).

The construction of a shield DC power jack typically involves an outer metallic casing, usually made from materials like copper or aluminum. This metallic shield encases the internal components of the jack, which include the contacts for the positive and negative DC voltage. The inner contacts, often crafted from highly conductive metals such as brass and sometimes plated with gold or silver, ensure efficient electrical conductivity while reducing the risk of oxidation and corrosion. The shield itself is electrically connected to the ground or negative terminal of the power supply, creating a closed - loop path for interfering signals.

The shield functions as a Faraday cage. When external electromagnetic fields attempt to penetrate the jack, the shield redirects these interfering signals to the ground, preventing them from reaching the sensitive inner contacts and disrupting the power supply. At the same time, it also contains any electromagnetic emissions generated by the device itself, reducing the likelihood of it causing interference to other nearby electronics. This bidirectional protection is crucial for maintaining the integrity of the DC power signal.

Overall, the DC jack power connector is a useful and versatile device that is used in a wide range of electronic devices. While it has some limitations, it remains an essential component for powering electronic devices.
