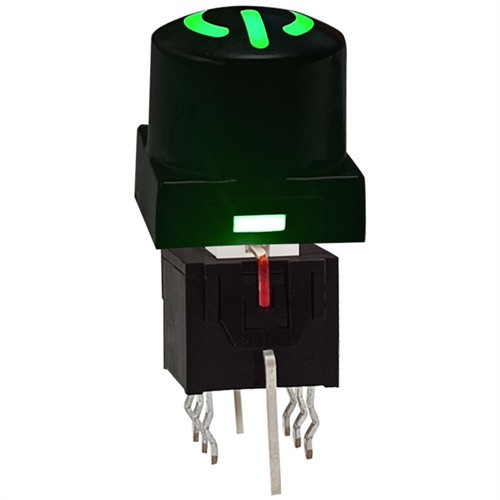

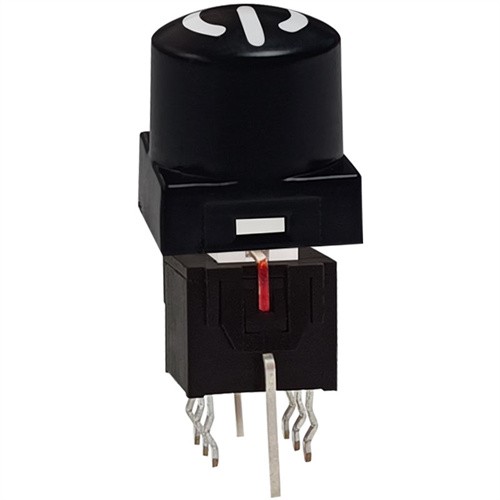

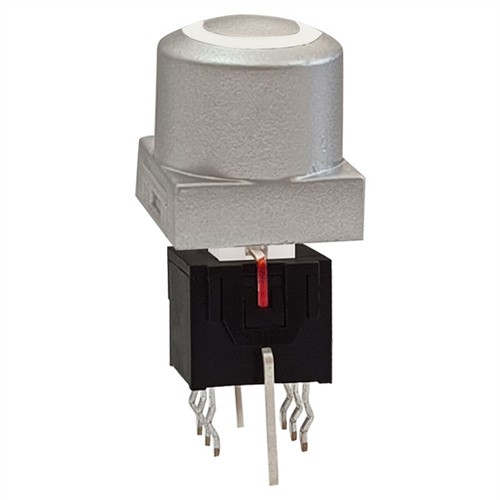

DPDT Illuminated Tact Switch

The Mini LED Push Tact Button Switch combines a compact footprint with a self-locking (latching) mechanism and DPDT circuit, making it an ideal choice for electronic products that require stable switching and multiple circuit control. Its integrated LED provides instant visual feedback, allowing users to easily identify the operating status without adding a separate indicator.

Unlike standard SPST switches, the DPDT configuration enables two independent circuits to be switched simultaneously. This makes the switch suitable for more complex control functions such as power management, signal routing, mode selection, and equipment control. It is widely used in industrial electronics, audio systems, communication equipment, medical devices, and intelligent control panels.

The self-locking design keeps the switch in its selected position after each press, providing a reliable ON/OFF function and reducing unnecessary repeated operation. Combined with a crisp tactile feel, the switch delivers positive actuation and dependable performance throughout its service life.

Its miniature construction allows engineers to save valuable PCB space while maintaining a clean control layout. The built-in LED is available in multiple colors, making it easy to distinguish operating modes, power status, or functional groups. This not only improves usability but also enhances the overall appearance of the finished product.

Key Features

• Self-locking (latching) operation for maintained switching

• DPDT circuit supports dual-circuit control

• Integrated LED for clear status indication

• Compact design for space-constrained PCB layouts

• Stable electrical contact and reliable mechanical performance

• Multiple LED colors and actuator options available

• Suitable for industrial controls, audio equipment, medical devices, instrumentation, and smart electronics

Rucoe Advantages

• 12+ years of experience in manufacturing push button and tact switches

• Factory-direct production with stable quality and competitive pricing

• OEM and ODM services for LED colors, actuator styles, and electrical specifications

• Strict quality inspection to ensure product consistency

• Fast sample preparation and dependable production capacity

• Technical support for custom design and application requirements

The Mini LED Push Tact Button Switch with latching function and DPDT contacts offers a practical combination of compact size, versatile circuit control, and clear LED indication, making it a reliable solution for professional electronic equipment and custom control systems.
