Green LED Rocker Switch

The 3-pin green LED rocker switch is a popular component used in many electrical circuits

EMAIL

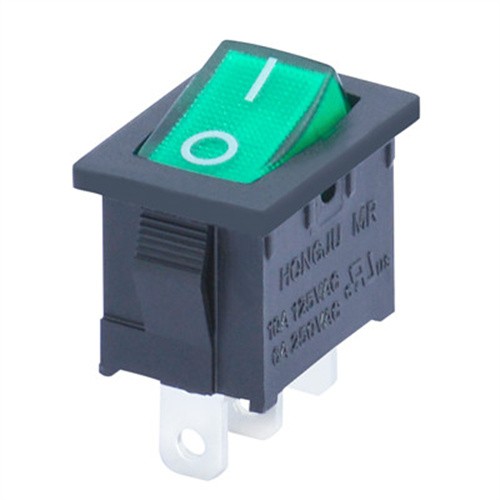

The 3-pin green LED rocker switch is a popular component used in many electrical circuits. It is primarily used to provide a visual indication of the status of a circuit, making it easier to monitor and control.

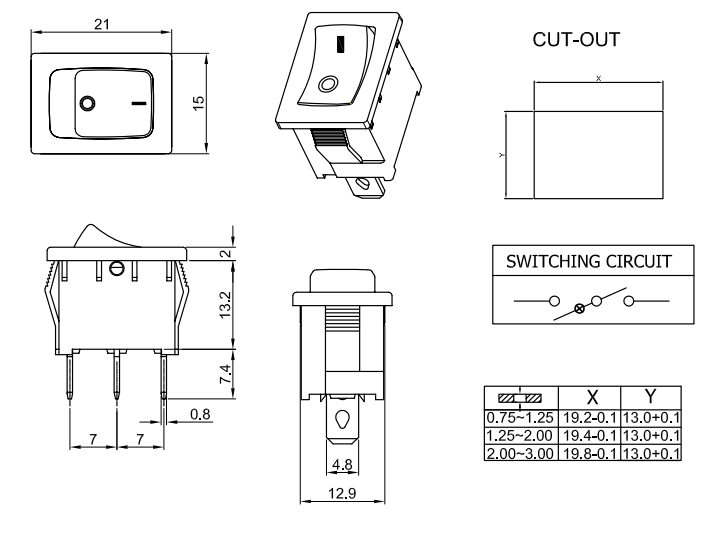

The 3-pin green LED rocker switches are designed as a standard size rocker switch that can easily mount on a panel. The pins are made of high-quality copper conductor material that can provide a better conductivity performance. The switch is made of a high-grade body material that can withstand harsh environments.

The 3 - pin green illuminated rocker switch is an advanced and highly practical electrical component that builds upon the functionality of the traditional 3 - pin rocker switch with the added benefit of illumination. Structurally, in addition to the three essential connection pins for circuit control, it incorporates an internal lighting mechanism, typically featuring an LED (Light - Emitting Diode) that emits a green light.

The illumination works in tandem with the switch's operation. When the switch is in the “off” position, the green light may be off or dim, serving as a visual indicator of the inactive state. As the rocker is toggled to either of the “on” positions, the green LED lights up brightly, clearly signaling that the circuit is now active and electricity is flowing through the connected components. This lighting feature is not only aesthetically pleasing but also highly functional, providing immediate visual feedback to users, even in low - light environments.

One of the key advantages of the 3 - pin green illuminated rocker switch is enhanced visibility and usability. In automotive dashboards, for example, the green glow helps drivers quickly identify which functions are engaged, reducing the need to fumble around in the dark. In industrial control panels, the illuminated switch allows operators to monitor the status of different circuits at a glance, improving efficiency and minimizing errors. Additionally, the green color of the illumination can be associated with safety, normal operation, or a specific function in many applications, making it a preferred choice for designers looking to convey clear visual cues.

This type of switch finds wide applications in various fields. Besides automotive and industrial settings, it is commonly used in consumer electronics like audio - visual equipment, where it adds a touch of sophistication while providing useful status information. In home automation systems, it can be employed to control devices such as smart lights or thermostats, with the green illumination indicating when the device is powered on and functioning properly.
