On Off On Rocker Switch

A 3-pin on-off-on rocker switch is a type of switch that is often used in electrical circuits to control the flow of electricity. It is commonly used in electronic devices, automotive applications, and industrial settings.

The switch has three pins, which are typically labeled as "A," "B," and "C." Pin A is the common pin, Pin B is the normally open (NO) pin, and Pin C is the normally closed (NC) pin.

When the switch is in the "off" position, there is no connection between pins A and B or pins A and C. When the switch is flipped to the "on" position, the connection is made between pins A and B, allowing electricity to flow through the circuit.

In the "on" position, if the switch is flipped again, it will go to the "off" position. However, if the switch is flipped a third time, it will go to the second "on" position, where the connection is made between pins A and C. This will effectively reverse the flow of electricity through the circuit, allowing for different functions or operations to occur.

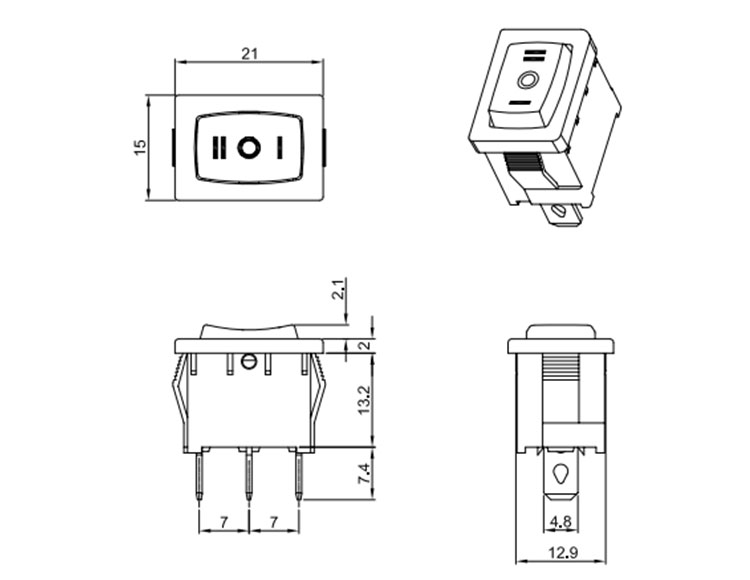

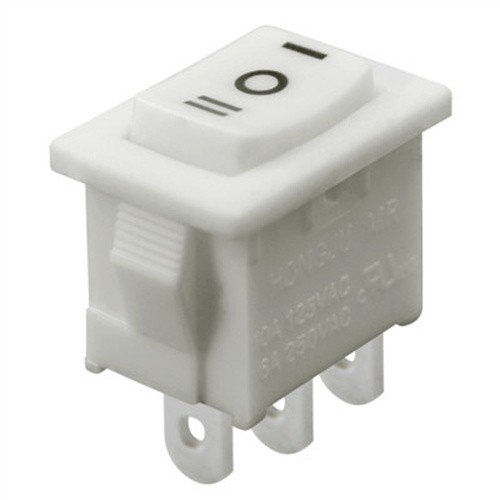

The 3 - pin on - off - on rocker switch is a versatile and commonly used electrical component. Structurally, it features three connection pins, which are crucial for its functionality, and a rocking lever on the surface for manual operation.

The working principle is straightforward yet effective. In the “off” position, the circuit is open, interrupting the flow of electricity. When the rocker is toggled to one of the “on” positions, it closes the circuit, allowing current to pass through the corresponding pins and powering the connected device or component. Moving the rocker to the other “on” position redirects the current flow to a different circuit path, enabling the switch to control two separate electrical circuits.

One of its main advantages is its flexibility. It allows for easy switching between different electrical configurations, making it ideal for applications that require multiple operating modes. For example, in automotive electrical systems, it can be used to control different lighting functions, like switching between high - beam and low - beam headlights. In electronic projects, it offers a simple way to select between different power sources or operating settings, enhancing the functionality and usability of the final product. Its intuitive rocker - style operation also makes it user - friendly, even for those with limited electrical knowledge.
