Illuminated Backlit Push Button

The Video Illuminated Tact Button is a unique type of button that is used specifically for matrix controllers. These buttons are designed to give users more flexibility and control over their devices by providing additional visual cues that are easy to identify and understand.

EMAIL

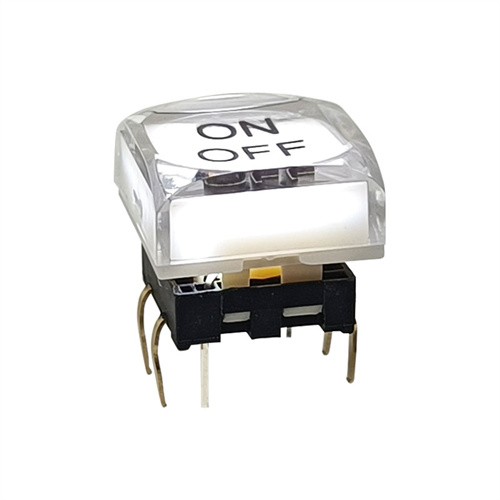

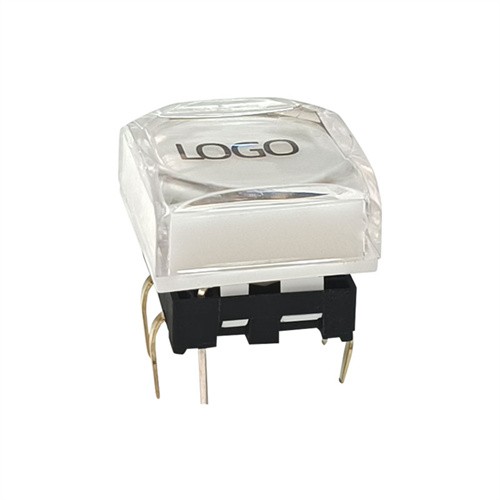

The illuminated backlit push button is a sophisticated electromechanical component that combines the fundamental functionality of a push button with the added benefit of integrated lighting, enhancing both usability and visual appeal across a wide array of applications.

Design and Structure

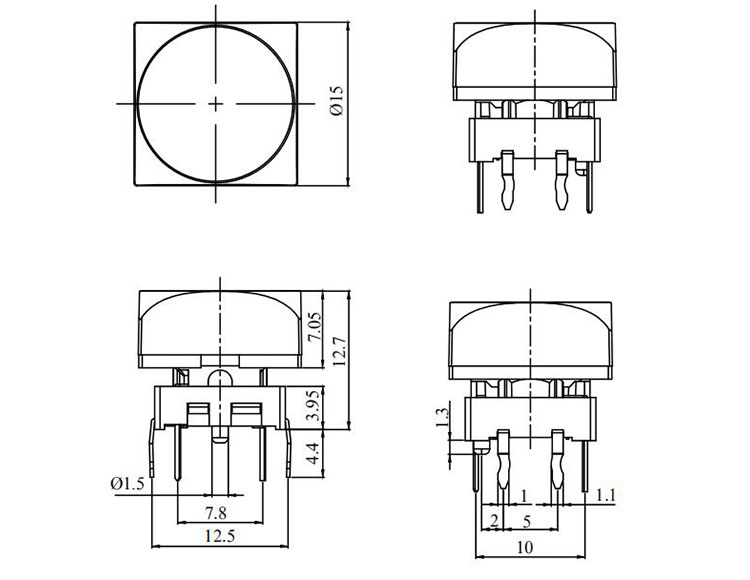

At its core, an illuminated momentary push button consists of a sturdy housing, typically crafted from materials like durable plastics (such as polycarbonate) or robust metals (like stainless steel or aluminum). The housing serves to protect the internal components and provides a secure mounting mechanism for installation on panels, consoles, or devices.

The button cap, which is the user - interacted surface, can vary in shape and size, commonly found as round, square, or rectangular. It is often made from a translucent or transparent material to allow the light from the backlighting to shine through effectively. Beneath the cap lies the actuator, a spring - loaded mechanism that, when pressed, makes or breaks an electrical connection.

The backlighting system is a crucial part of the button's design. It usually features one or more light - emitting diodes (LEDs) positioned strategically behind the button cap. These LEDs can emit a wide range of colors, including red, green, blue, yellow, white, and even customizable RGB combinations. Some advanced models may incorporate light - diffusing elements, such as diffuser plates or internal textures, to ensure an even and consistent spread of light across the button surface, eliminating hotspots and creating a uniform glow.

Functionality

The primary function of an Broadcast Vision Mixer illuminated buttons remains that of a traditional push button: to open or close an electrical circuit. When the button is pressed, the actuator depresses, causing the internal electrical contacts to engage, which either completes a circuit (in the case of a normally open button) or breaks it (for a normally closed button). Once the pressure is released, the spring - loaded mechanism returns the actuator to its original position, restoring the initial circuit state.

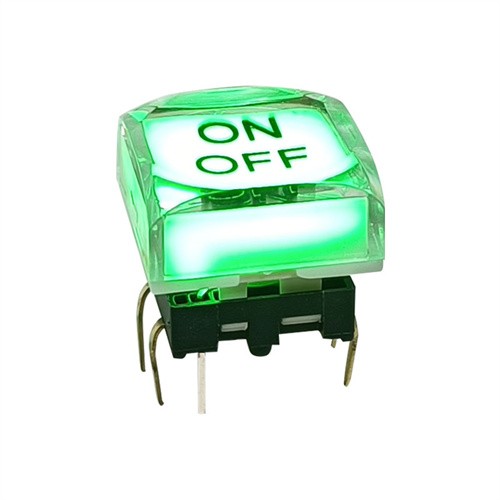

The illumination feature, however, adds an extra layer of functionality. The backlighting can serve as a visual indicator, signaling various states of the associated system or device. For example, a steady - lit green button might indicate that a system is operational and functioning normally, while a flashing red button could alert users to an error, warning, or emergency condition. In some cases, the lighting can also be used to show the button's active or inactive status; a dimly lit button might signify that it is disabled, while a brightly lit one indicates it is ready for use.
