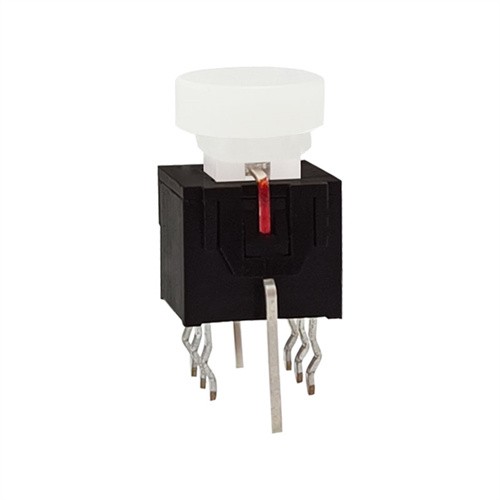

Latching Illuminated Button Switch

A latching illuminated tact switch with a circular cap is a popular electronic component used in various applications that require a sleek design and robust performance.


A latching illuminated tact switch with a circular cap is a popular electronic component used in various applications that require a sleek design and robust performance. This type of switch is designed to provide a tactile feel and audible feedback when pressed, allowing the user to feel the activation of the switch.

Latching illuminated button switches provide clear visual feedback to users through integrated LED illumination. This enhances user experience by making it easier to identify the status or function of the switch, especially in low-light conditions or environments where visibility is limited.

The combination of tactile feedback and LED illumination creates an intuitive interface for users to interact with electronic devices. Users can easily identify when the switch has been activated and whether it is in an on or off state, enhancing usability and reducing the likelihood of errors.

The switch mechanism of a latching illuminated tact switch consists of a plunger, a spring, and two contacts. The plunger is the part that users press to activate the switch, while the spring provides the tactile feel and returns the plunger back to its original position after being released. Meanwhile, the contacts are the electrical connections that control the flow of current through the switch. The latching mechanism enables the switch to remain in its ON or OFF state until the user presses it again to toggle to the opposite state.

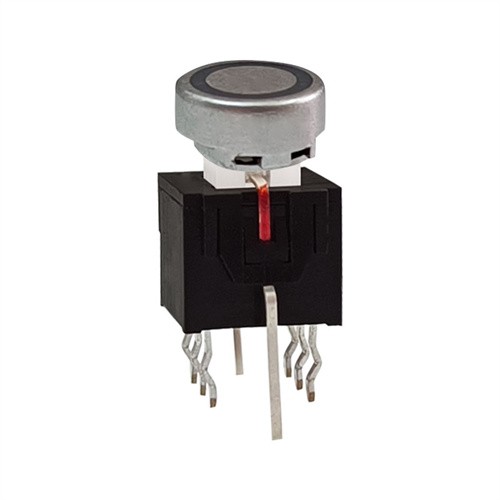

The circular cap of a latching illuminated push switch is designed to provide a comfortable pressing experience for the user. The circular shape makes the switch easy to locate and press. Additionally, the cap is available in different colors and materials, allowing for customization in design and function. The cap may be made of plastic or metal, with different surface textures such as matte, glossy, or rubberized, to suit different preferences and applications.

                                         Model                   TS85-0060WR
                                         Product Item                   Illuminated Tact Switch

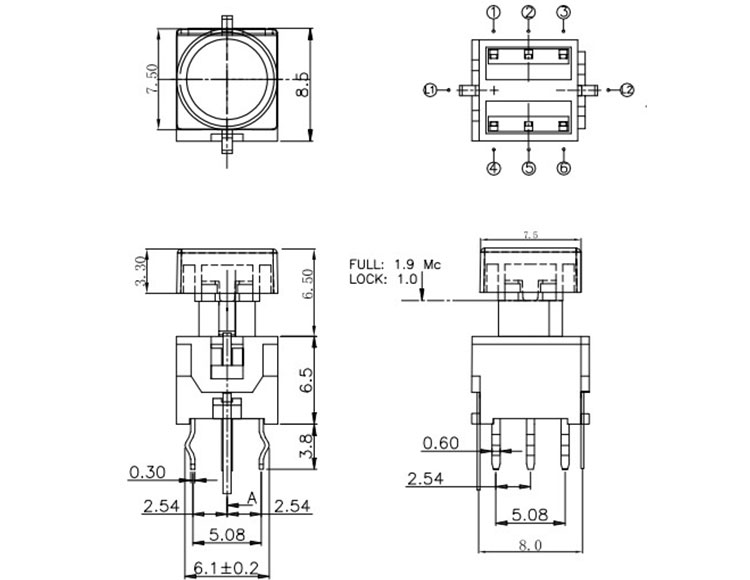

                                         Switch Size                   7.5*8.5*mm
                                         LED Options                   Bi-color
                                         Actuation Force                   250gf
                                         Function                   Latching
                                         Terminal Style
                   Through hole
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS
