LED Illuminated Button Switch

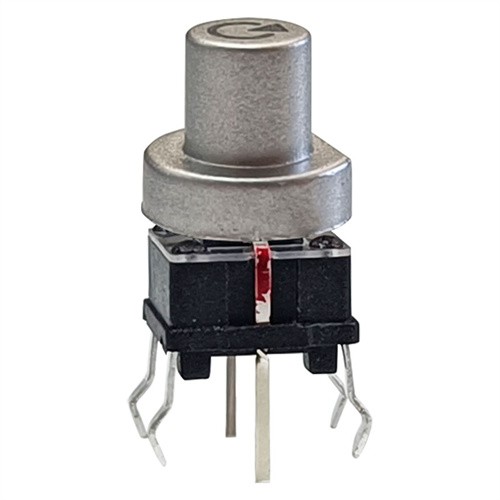

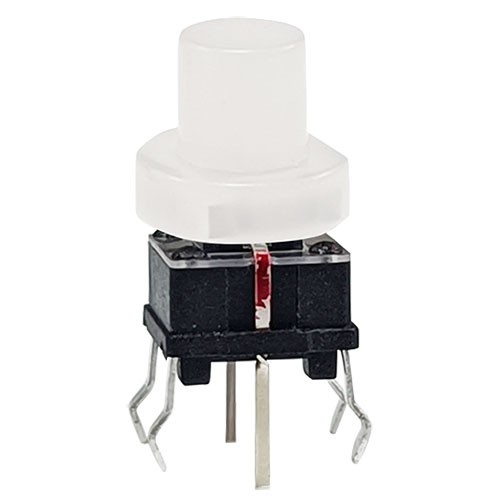

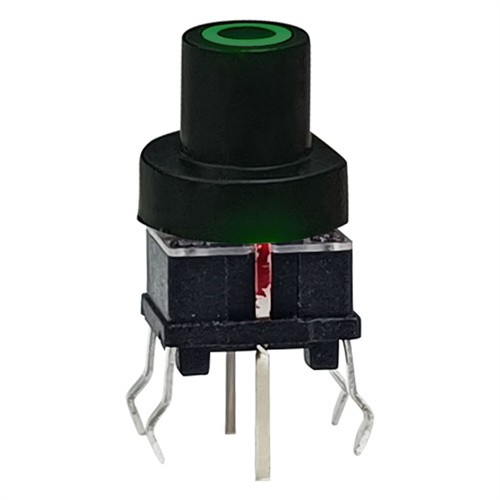

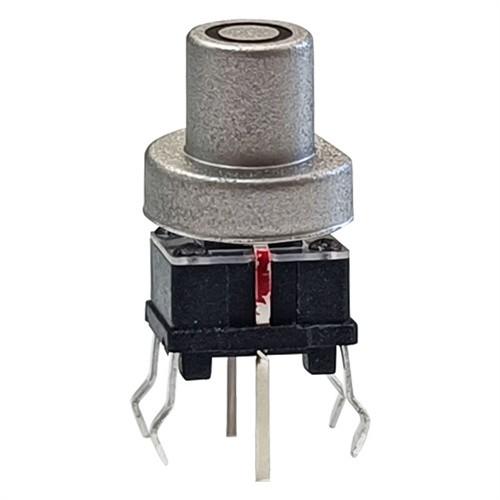

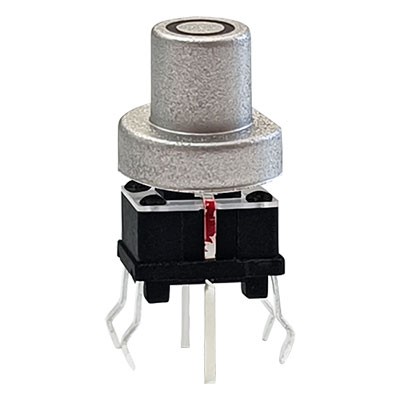

The 7x7mm vertical illuminated LED tact switch is typically constructed using a plastic housing, a metal dome, and a PCB (printed circuit board)

EMAIL

The 7x7mm vertical illuminated LED tact switch is typically constructed using a plastic housing, a metal dome, and a PCB (printed circuit board). The plastic housing holds all the components together and provides a base for the switch. The metal dome is a critical component that provides the tactile feedback when the switch is pressed. When the button is pressed, the metal dome deforms, producing a clicking sound.

The PCB is the circuit board that provides the electrical connections for the switch. The PCB includes the LED, which is mounted to the top of the switch. When the switch is pressed, the metal dome makes contact with the PCB, completing the electrical circuit and turning on the LED.

PRODUCT PROFILE
                                         Model                   TS16-00EAR6
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS
