LED Right-angled Tact Switch

right-angled tact switch is a type of electronic component that is commonly used in a variety of devices such as remote controls, calculators, and game controllers to provide input. They are electromechanical devices that consist of a button or switch that is pushed to make electrical contact with the circuit.

EMAIL

A right-angled tact switch is a type of electronic component that is commonly used in a variety of devices such as remote controls, calculators, and game controllers to provide input. They are electromechanical devices that consist of a button or switch that is pushed to make electrical contact with the circuit. These switches commonly have an LED light to indicate their status, which can provide additional functionality and aesthetic appeal.

In this article, we will discuss illuminated right-angled tact switches, including their construction, functionality, and applications.

Construction of Illuminated Right-Angled Tact Switches

Illuminated right-angled tact switches are constructed with two main parts: the actuator and the body. The actuator is the button or switch that is pushed to make electrical contact, while the body houses the internal components.

The actuator is usually made of plastic or metal and is designed to provide tactile feedback when pressed. This feedback is important because it lets the user know when the button has been pressed and when the circuit has been activated. The tactile feedback can be provided in a number of ways, such as with a click or snap action, depending on the design of the switch.

The body of the switch is usually made of plastic and houses the internal components. These components include a contact mechanism, LED, and drive circuit. The contact mechanism is responsible for making and breaking the electrical connection, while the LED provides illumination to indicate the status of the switch. The drive circuit controls the LED and provides the necessary voltage and current to illuminate it.

The components of the right-angled tact switch are usually mounted on a printed circuit board (PCB) and connected with soldered terminals. This allows for easy installation and replacement of the switch.

PRODUCT PROFILE
                                         Model                   TS17-0021BW1
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

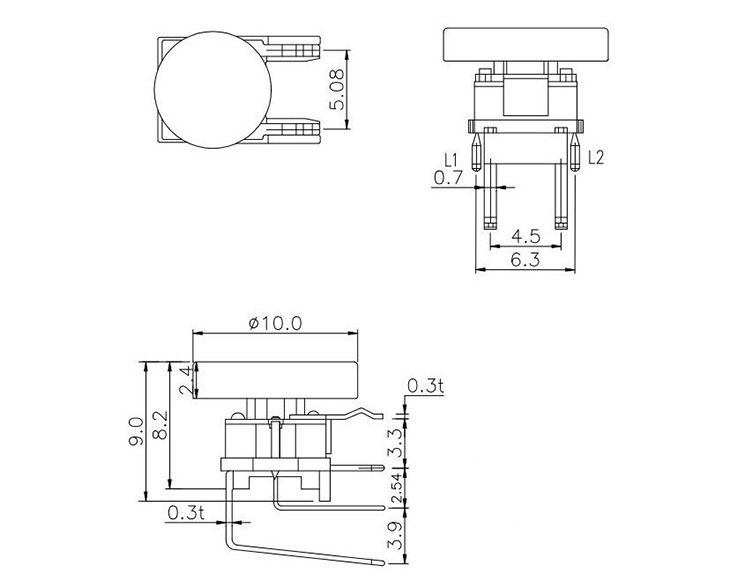

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
