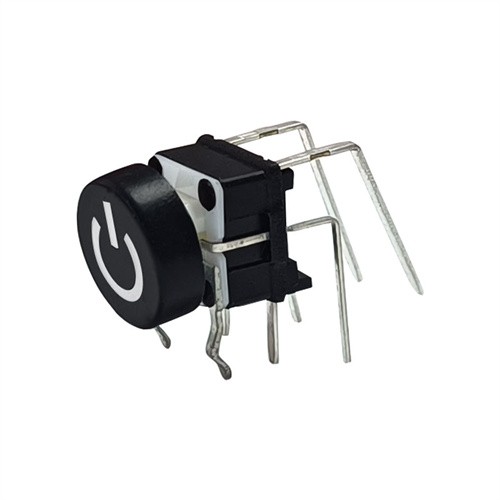

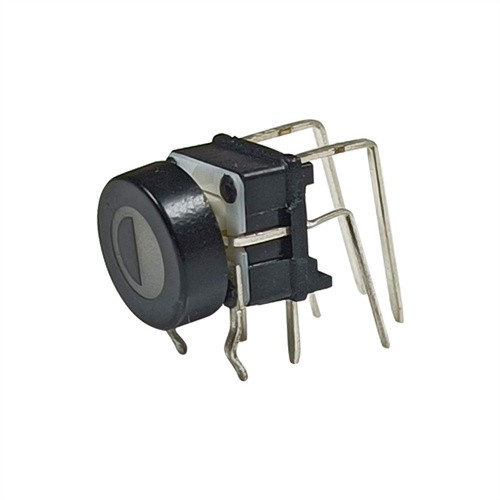

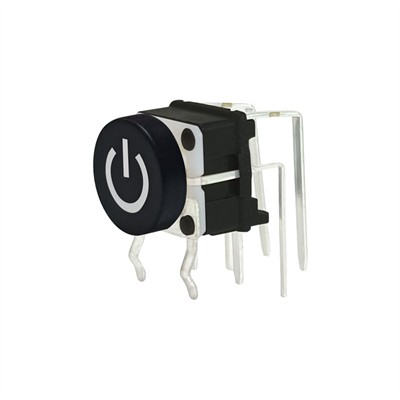

Momentary Illuminated Right Angle Switch

A momentary illuminated right angle tactile switch is a type of switch that is commonly used in electronic devices, such as computers, keyboards, and modems.

EMAIL

A momentary illuminated right angle tactile switch is a type of switch that is commonly used in electronic devices, such as computers, keyboards, and modems. This type of switch is known for its durability, responsiveness, and ease of use. As its name suggests, the switch is illuminated when it is toggled on and off, making it easy to see in low light conditions.

Design and Function

A momentary illuminated right angle tactile switch consists of several parts that come together to form a functional unit. Its design includes a simple mechanism that allows for momentary activation, meaning it will only stay on for as long as it is pressed down.

The switch's primary function is to complete or break the electrical connection between two conductive elements, such as two metal plates or wire connectors. This connection can be made or broken by applying pressure on the switch's actuator, which is the part of the switch that is pressed down to turn it on or off.

A momentary illuminated right angle switch is an electronic component designed to provide temporary electrical contact, tactile feedback, and integrated LED illumination, specifically configured in a right angle orientation. These switches are engineered to offer precise user interaction, visual indication, and convenient installation in applications with limited space.

PRODUCT PROFILE
                                         Model                   TS17-0023BW1
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
