PCB Illuminated LED Switch

One type of tact switch that is commonly used in devices is the illuminated LED tact switch with an oval cap. This switch is designed to provide a tactile feedback response when pressed and includes a built-in LED that illuminates when the switch is pressed. The oval cap design of the switch makes it easy to find and press, even when using the device in the dark.

The illuminated LED tact switch with oval cap is typically manufactured in a 7x7mm size, making it a compact and versatile switch. This size is ideal for use in portable and handheld devices where space is limited. The switch can be installed directly onto a printed circuit board (PCB) using surface mount technology (SMT), which makes it easy to install and reduces the amount of space required on the board.

The switch includes a built-in LED that illuminates when the switch is pressed. The LED provides a visual feedback response that lets the user know that the switch has been pressed. The LED can be customized to different colors, making it ideal for use in devices that require specific color schemes.

PCB illuminated LED switches come in various mounting options, including through-hole and surface-mount configurations. This versatility allows for flexible integration into different PCB layouts and assembly processes, catering to diverse design requirements.

The distinguishing feature of PCB illuminated LED switches is their integrated LED illumination. These switches incorporate LEDs (Light Emitting Diodes) that light up upon switch activation, providing visual feedback to users. LED illumination enhances usability, especially in low-light conditions, by indicating the switch's status or function

The switch is typically enclosed in a durable plastic housing that protects it from damage and provides a clean look. The oval cap design of the switch makes it easy to press and provides a tactile feedback response that is easy to feel.

PRODUCT PROFILE

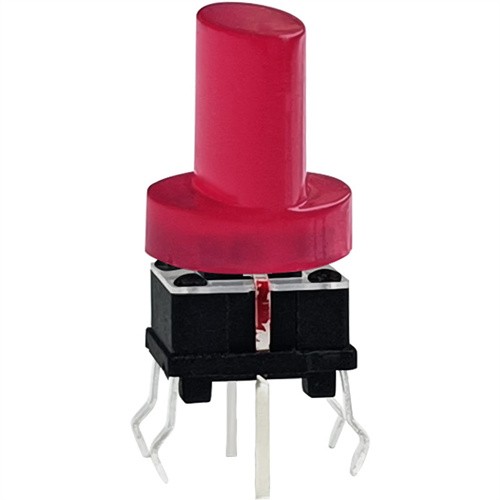

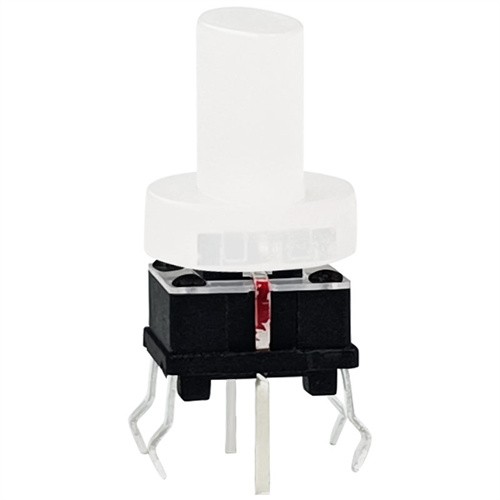

Model	TS16-0065WR
Product Item	Illuminated Surface Mount Tact Switch
Switch Size	7.0*7.0mm
LED Options	White/ Red/Blue/Yellow/Green/ bi-color
Actuation Force	250gf
Function	Momentary
Terminal Style	Through Hole
Payment	T/T 100% in advance
Delivery	15-20 workdays
Shippment	DHL/ FedEx /UPS

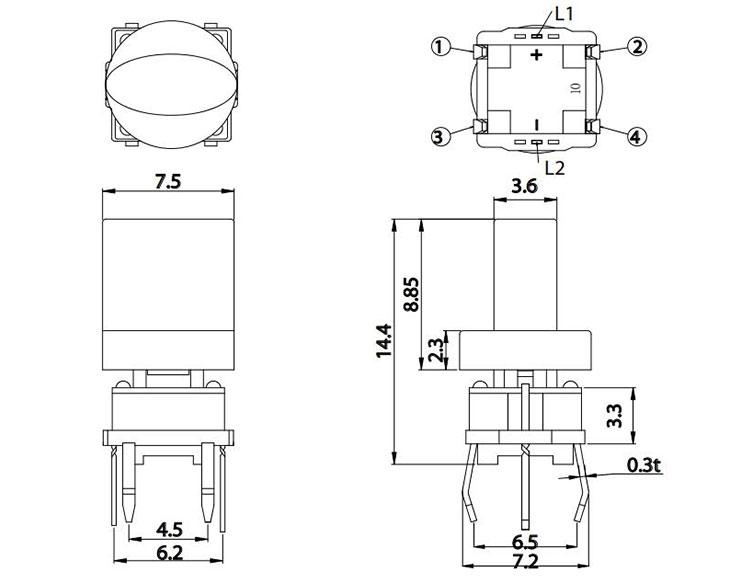

PRODUCT DIMENSION
