PCB Mount LED Momentary Switch

One of the most significant benefits of using the 6x6 Illuminated PCB Mount Tactile Switch is the fact that it can be illuminated, which makes it easier to locate in low-light environments

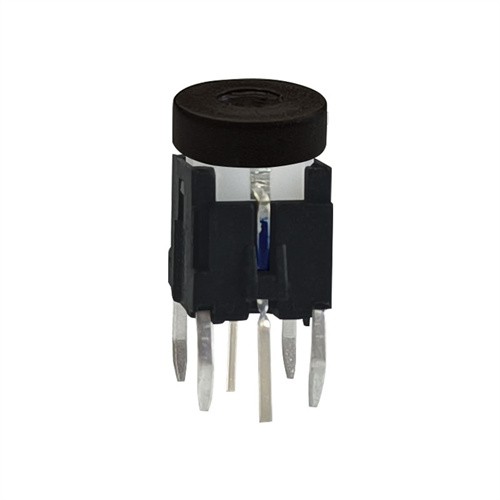

This is pcb mount illuminated momentary switch with dia 7.5mm and black cap with hole, the cap can be made with white, black, red and green. The button is the primary component of the switch, and it is made up of two materials, plastic and metal. The plastic material is used to create the button's top, while the metal material is used to create the button's contacts, which are responsible for completing the circuit when the button is pressed.

The metal dome is placed directly on the button's contacts and is responsible for providing tactile feedback when the button is pressed. This feature is essential in providing a user with a distinct feeling when they interact with the switch, giving them the impression that the button has been pressed.

Finally, the switch mechanism is responsible for completing the circuit when the button is pressed, which means that it allows current to flow when the button is activated. This mechanism comprises a variety of electrical contacts, springs, and other essential components that work together to ensure that the switch functions smoothly and efficiently.

PRODUCT PROFILE
Model	TS9-004BR
Product Item	Illuminated Tact Switch
Switch Size	6.06.010.0mm
LED Options	White/ Red/Blue/Yellow/Green/ bi-color
Actuation Force	250gf
Function	Momentary
Terminal Style	Through Hole
Payment	T/T 100% in advance
Delivery	15-20 workdays
Shippment	DHL/ FedEx /UPS

PRODUCT DIMENSION

PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
