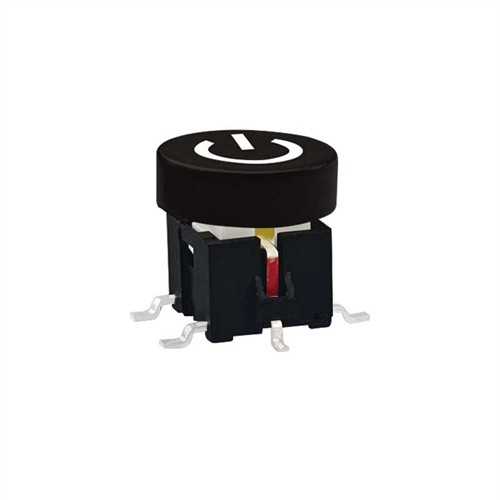

The 6mm*6mm illuminated LED SMD tact switch is a small, surface-mount switch that is designed for use in a wide range of applications.
As the demand for smaller, more efficient, and visually intuitive electronic components continues to grow, the SMD (Surface-Mounted Device) LED tact switch has emerged as a preferred choice for many modern electronics. These compact switches combine the tactile feedback of traditional tact switches with the added benefit of integrated LED illumination. As a result, they not only provide clear, reliable user interaction but also enhance the visual appeal and user experience of a product.
What are SMD LED Tact Switches?
An SMD LED tact switch is a surface-mount component that integrates a tactile switch with an LED (Light Emitting Diode) light source. Unlike traditional through-hole switches, SMD tact switches are designed to be mounted directly onto the surface of a PCB (printed circuit board), making them an ideal choice for compact and lightweight designs. The inclusion of an LED allows these switches to offer visual feedback to the user, often in the form of a brightly illuminated light when the switch is pressed.
Typically, these switches are used in applications where a tactile response (a “click” or “press” feel) is required, combined with the convenience of an LED indicator to signal different operational states, such as power on/off, mode changes, or error alerts. Some SMD LED tact switches offer customization options such as LED color selection, brightness adjustment, and illumination patterns.Designers can tailor the LED illumination to meet the specific requirements of their applications, enhancing flexibility and versatility.The combination of tactile feedback and LED illumination creates a user-friendly interface that enhances the usability of electronic devices.The surface mount design and compact form factor of SMD LED tact switches contribute to space efficiency in electronic designs.
Compact and Space - Saving Design
One of the most significant advantages of SMD illuminated momentary switches is their small size. With a minimal footprint, they can be densely packed onto PCBs, allowing for the creation of more compact and lightweight electronic devices. This is particularly crucial in industries where space is at a premium, such as in wearable technology, smartphones, wireless earbuds, and other portable electronics. The surface - mount design also enables automated assembly processes, increasing production efficiency and reducing manufacturing costs.
Enhanced Visual Indication
The integrated LED illumination provides clear and immediate visual feedback. In many applications, different colors are used to represent various statuses or functions. For example, in a power - management system, a green LED might indicate that the device is powered on and operating normally, while a red LED could signal an error, a low - battery condition, or a fault. In control panels or user interfaces, the illuminated switches make it easier for users to identify and operate the switches, even in low - light environments. This visual indication not only improves the usability of the device but also reduces the likelihood of user errors
PRODUCT PROFILE | |
Model | TS8-003BWA1 |
Product Item | Illuminated LED Tact Switch |
Switch Size | 6.0*6.0*10.0mm |
LED Options | White/ Red/Blue/Yellow/Green/ bi-color |
Actuation Force | 250gf |
Function | Momentary |
Terminal Style | Surface Mount |
Payment | T/T 100% in advance |
Delivery | 15-20 workdays |
Shippment | DHL/ FedEx /UPS |
