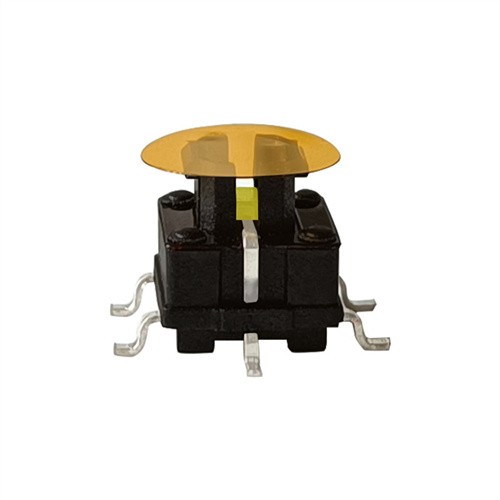

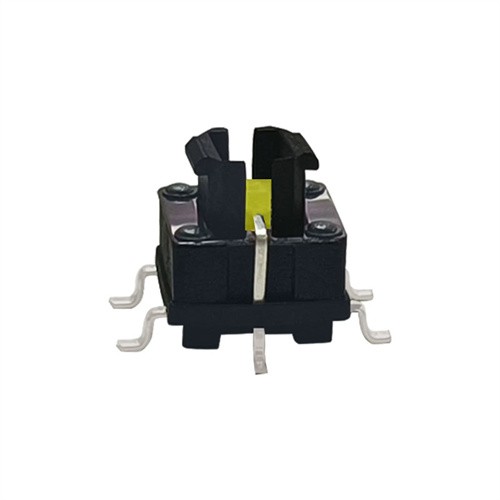

Surface Mount Illuminated Tact Switch

Surface mount illuminated tactile switches are a type of switch that is commonly used in electronic devices, such as remote controls, keyboards, and other devices.

EMAIL

Surface mount illuminated tactile switches are a type of switch that is commonly used in electronic devices, such as remote controls, keyboards, and other devices. They are often used to provide a tactile feedback to the user when a button is pressed, and they also provide illumination for the button or switch.

Surface mount illuminated tactile switches, often referred to as SMT illuminated tactile switches, are widely used in the electronics industry to improve the appearance and functionality of different devices. The switches come with a range of specifications, and they can be customized to suit different applications.

One of the key features of surface mount illuminated tactile switches is their compact design. They are designed to be installed directly onto printed circuit boards (PCBs), which saves space and simplifies the manufacturing process. The switches feature a small footprint and a low profile, which makes them ideal for use in small electronic devices.

The switches also come with an illumination feature, which makes it easy to locate the button or switch in low light conditions. The LEDs provide a bright and uniform light, which enhances the appearance of the device and makes it easier to use.

Surface mount illuminated tactile switches are available in a range of sizes, from small 6x6mm switches to larger 12x12mm switches. The switches are available with a range of operating forces, from 100gf to 500gf, depending on the application.

The switches are also available with a range of actuation forces, which provide a tactile feedback to the user when the button or switch is pressed. This feedback ensures that the user knows when a button has been pressed, which reduces errors and improves the user experience.

Surface mount illuminated tactile switches are available with a range of termination options, including gull-wing, J-lead, and reverse gull-wing. The switches can be soldered directly onto the PCB, which simplifies the manufacturing process and reduces costs.

The switches also come with a range of customization options, including different color options for the LED or button, single-pole or double-pole options, and custom labeling. This allows manufacturers to create switches that are tailored to their specific requirements.

In conclusion, surface mount illuminated tactile switches are an essential component of many electronic devices. They provide a tactile feedback to the user when a button is pressed, and they also provide illumination for the button or switch. The switches are compact, customizable, and easy to install, making them an ideal choice for many applications in the electronics industry.

PRODUCT PROFILE
                                         Model                   TS16-0000WA
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

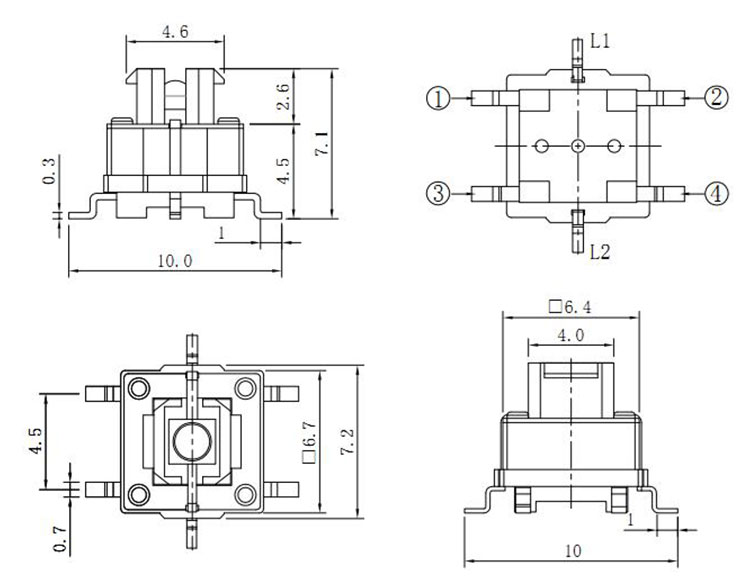

PRODUCT DIMENSION

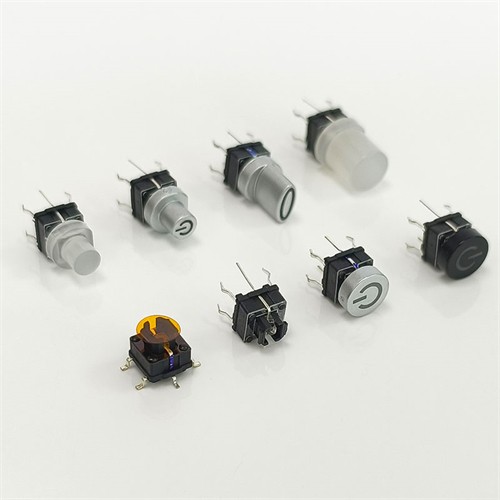

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
