Surface Mount Tactile Switch

A Surface Mount Led Tact Switch is a versatile and compact switch designed for use in a wide range of electronic applications. This switch combines several features—surface mount technology (SMT) for easy integration into printed circuit boards (PCBs), bi-color illumination for enhanced visual feedback, and tactile feedback to improve the user interface.

The SMD Led Tact Switch features a push-button design that allows for precise and accurate switching. This SMD illuminated tactile switch is also highly responsive, ensuring that it can be quickly and accurately activated. The bi-color illumination of this switch makes it easy to see, even in low light conditions, making it ideal for use in a wide range of settings.

The illuminated tact switch finds wide-ranging applications across various industries and sectors. It can be used in keyboards, keypads, remote controls, instrumentation panels, gaming peripherals, audio equipment, and automotive dashboard controls, among others. Its versatility makes it a preferred choice for designers and engineers seeking a reliable and visually appealing switch solution.

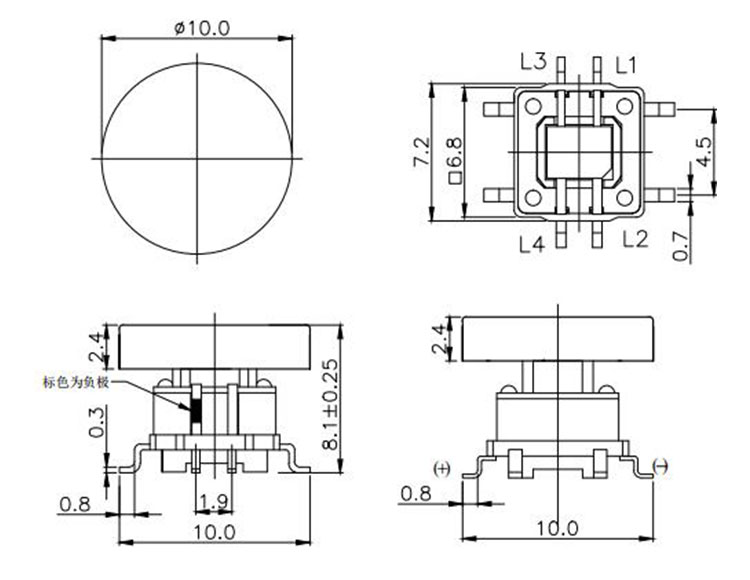

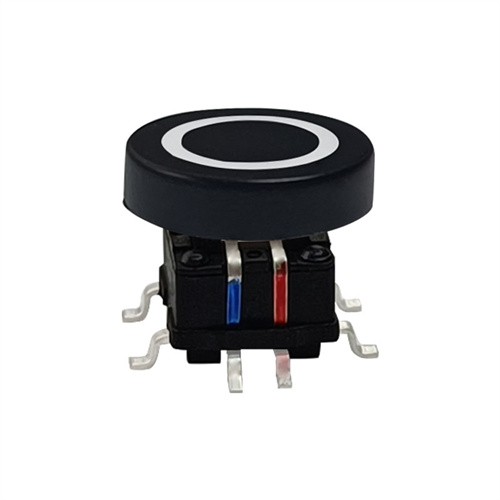

The TS7 series SMT bi-color illuminated tact switch offers a compact, reliable, and visually appealing solution for a wide range of applications requiring tactile feedback and visual indication. Its combination of tactile feedback, bi-color LED illumination, surface mount design, durability, and versatility makes it a versatile choice for designers and engineers seeking high-performance switch solutions for their products and systems.

A Surface Mount Bi-Color Illuminated Tact Switch combines small form factor, dual-color lighting, and tactile feedback, making it an ideal choice for applications that require precise control, visual feedback, and efficient production processes. Its compact size and easy integration with SMT make it especially suitable for modern electronics where both functionality and aesthetics are crucial.

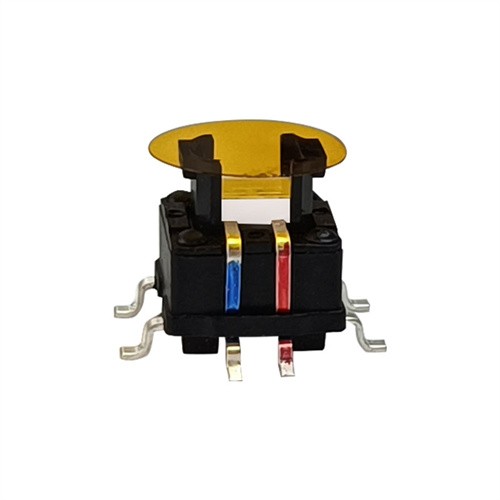

A surface mount bi - color illuminated tact switch is a specialized electro - mechanical component designed to be directly soldered onto the surface of a printed circuit board (PCB). Unlike through - hole switches, which require holes to be drilled through the PCB for installation, surface mount switches are attached using automated pick - and - place machines, enabling faster and more precise assembly processes.

The “bi - color” aspect refers to the integrated dual - colored LEDs, typically combinations like red and green, blue and white, or other color pairs. These LEDs can be independently controlled or programmed to display various lighting patterns, providing enhanced visual feedback and status indication. When the switch is pressed, it actuates a mechanical mechanism that closes or opens an electrical circuit, accompanied by a tactile “click” that gives users a clear sense of confirmation. This tactile feedback, combined with the vibrant illumination, makes the switch highly intuitive and user - friendly.
