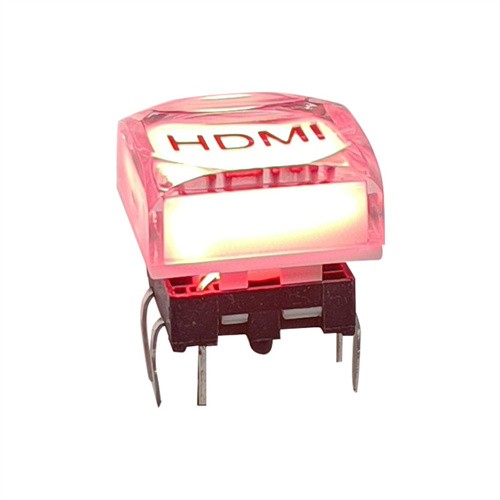

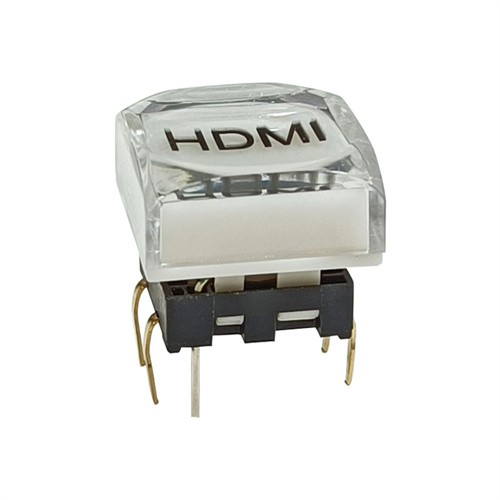

15x15 Illuminated Pushbutton: A Compact Powerhouse of Function and Visibility

The 15x15 Momentary Led Tact Switch is a meticulously engineered electrical component that marries the tactile functionality of a traditional pushbutton with the enhanced usability of integrated lighting. Measuring just 15 millimeters by 15 millimeters, this compact device punches above its weight, finding applications across diverse industries where space efficiency, clear feedback, and reliable operation are paramount.

Design and Build

Constructed with durability in mind, the 15x15 Miniature Led Tact Switch features a robust housing typically crafted from high - grade thermoplastics like polycarbonate or ABS. These materials offer excellent resistance to impact, abrasion, and a wide range of environmental factors, ensuring the button can withstand the rigors of daily use. The button's surface is often designed with a smooth finish for a sleek look, though some models may incorporate texture or patterns to improve grip and prevent accidental presses.

At the heart of the pushbutton lies its illumination system. A high - quality LED (Light - Emitting Diode) is embedded within the button, capable of emitting a spectrum of colors, including red, green, blue, yellow, and white. The LED is paired with a precisely engineered light - diffusing mechanism, which could be in the form of internal ridges, a diffuser plate, or a specialized optical design within the button's body. This ensures that the light is evenly distributed across the button face, creating a consistent, bright glow without any harsh hotspots.

The internal mechanical components of the pushbutton are equally well - designed. A spring - loaded actuator mechanism provides tactile feedback when the button is pressed, offering a satisfying "click" that gives users immediate confirmation of activation. The contacts within the button are made from highly conductive materials, such as silver - alloy or gold - plated metals, to minimize electrical resistance and ensure reliable circuit connections over an extended lifespan.

Functionality

As a pushbutton, its primary function is to open or close an electrical circuit. When the button is depressed, the actuator engages the internal contacts, completing the circuit and allowing current to flow. Releasing the button causes the spring - loaded mechanism to return it to its original position, breaking the circuit. This simple yet effective operation makes it suitable for a multitude of tasks, from powering devices on and off to triggering specific functions within complex systems.

The illumination feature significantly enhances the pushbutton's functionality. It serves as a visual status indicator, with different colors and lighting patterns conveying various messages. For instance, a steady - green light might indicate normal system operation, while a flashing red light could signal an error or emergency condition. In some advanced models, the illumination can be controlled programmatically, enabling custom lighting sequences to indicate different states or modes of operation. This visual feedback is invaluable, especially in low - light environments or when quick system status checks are required.
