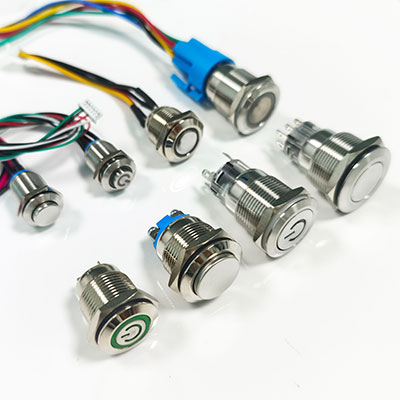

Flush vs Raised Metal Push Button Switches: Which Is Right for Your Panel

Choosing between flush and raised metal push button switches affects more than the appearance of an equipment panel. The head style can influence how easily an operator locates the button, how much it protrudes from the panel, and how convenient the surface is to clean.

For industrial control panels, outdoor equipment, and compact electronic devices, the right option depends on the operating environment, panel layout, and user requirements.

一. What Is a Flush Metal Push Button Switch?

A flush metal push button switch has an actuator head that sits level with when installed. Its low-profile design makes a relatively flat panel appearance.

The switch typically consists of a metal actuator, housing, mounting thread, and internal switching mechanism. Depending on the model, it may also include different LED illumination combinations , different contact configurations, and momentary or latching operation.

Key Features of Flush Head Switches

1. Low-profile design: The head does not protrude noticeably from the panel, it helps reduce unexpectly contact in some installations.

2. Easy surface cleaning: The relatively flat surface can make daily wiping more convenient. The gap between the switch and panel, as well as the sealing structure, still needs consideration.

3. Compact panel appearance: Flush buttons work well on panels with multiple controls or a clean, integrated design.

4. Multiple configurations: Depending on the model, flush metal push button switches may be available with LED indicators, different contact arrangements, and various switching functions.

Typical Applications

Flush metal push button switches can be considered for:

A. Medical support equipment and electronic instruments

B. Compact control panels with closely arranged buttons

C. Portable power equipment and electrical enclosures

D. Equipment that requires frequent surface cleaning

E. Devices where a low-profile appearance is preferred

二. What Is a Raised Metal Push Button Switch?

A raised metal push button switch has an actuator head that extends above the surrounding panel surface. The raised profile makes the button easier to locate by touch and can help operators identify the control without looking directly at it.

Like a flush-head model, a raised metal push button switch may include a metal housing, mounting thread, internal contacts, and optional LED illumination. The main difference is the height and profile of the actuator head.

Key Features of Raised Head Switches

1. Easy to locate by touch: The raised profile gives operators a more noticeable physical reference point.

2. Convenient for gloved operation: A protruding head may be easier to find and press when operators wear work gloves, depending on the button size and spacing.

3. Clear visual distinction: Different head profiles can help distinguish controls on a panel when combined with suitable labels or symbols.

4. More exposed profile: The raised head occupies space above the panel and may be more likely to contact nearby objects in crowded installations.

Typical Applications

Raised metal push button switches may be suitable for:

A. Industrial machinery and control cabinets

B. Outdoor equipment and electrical enclosures

C. Portable power supply cabinets

D. Equipment operated by personnel wearing work gloves

三. Main Differences Between Flush and Raised Metal Push Button Switches

Neither head style is universally better. The main difference is how the actuator sits relative to the panel and how that profile impacts operation and installation.

Important: Head style does not determine the switching function or protection rating. A flush or raised model may offer momentary or latching operation, but the available configurations depend on the specific product. Waterproof performance also depends on the switch design, seals, panel installation, and specified test conditions.

四. How to Choose the Right Head Style

Before selecting a flush or raised metal push button switch, evaluate these four factors.

1. Operating Environment

Check items that may touch the button in use. Use flush buttons to prevent snagging, raised ones for easy tactile operation with gloves. For vibrating or often handled equipment, arrange panels to avoid accidental activation.

2. Panel Layout

Check spacing between buttons and nearby parts. Ensure enough room for bare or gloved fingers. Avoid raised heads hit by doors, covers, cables or adjacent parts. Use flush heads for tight layouts, raised heads for better tactile feel with enough clearance.

3. Cleaning Requirements

A flush surface can make cleaning more convenient. However, the head style alone does not determine whether a switch is suitable for washdown or wet environments.

4. Switching Function and Electrical Requirements

Flush and raised heads can be available with various switching functions. Confirm whether the application requires:

Momentary: The switch returns to its normal position after release.

Latching: The switch maintains its switched state until operated again.

五. What Should Buyers Confirm with the Supplier?

Before requesting a quotation or placing an order, provide the following information to help the supplier recommend a suitable model.

When comparing flush vs. raised metal push button switches, start with the operating environment and panel layout rather than appearance alone. Flush heads are worth considering when a low profile and convenient surface cleaning are priorities. Raised heads may be a better fit when tactile identification and easy access are important.

The final decision should also account for switching function, electrical ratings, terminal arrangement, and protection requirements.
