Metal Push Button Switch Guide: Types, Features, Specifications and Applications
Metal push button switches are widely used in industrial equipment, control panels, automation systems, medical devices, kiosks, security equipment, and many other electronic products. Compared with common plastic switches, they offer a more durable structure, beautiful appearance, and higher resistance to harsh environments.
As modern equipment increasingly demands reliability and long service life, metal push button switches have become a preferred choice for engineers, equipment manufacturers, and product designers. This guide explains what a metal push button switch is, its classifications, main specifications, major advantages, and why it remains one of the most popular switch solutions across industries.
一. What Is a Metal Push Button Switch?

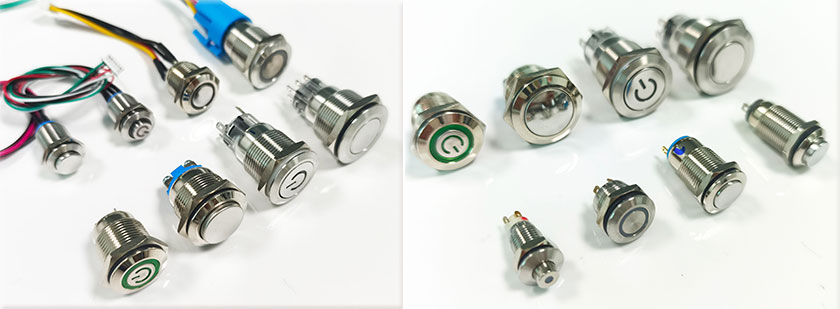

A metal push button switch is an electro-mechanical switch operated by pressing a metal actuator. When the button is pressed, the internal contacts change state, allowing or interrupting an electrical circuit.
Unlike traditional plastic push buttons, metal push button switches use metal housings, typically made from: Stainless steel, Nickel-plated brass, Black anodized aluminum, Zinc alloy
The metal shell offers better mechanical strength and environmental protection, making these switches suitable for demanding applications.
Metal push button switches are commonly installed through a panel and fixed with a threaded body and nut. Their steady appearance and robust construction make them a ideal for both industrial equipment and premium consumer products.
二. Classification of Metal Push Button Switches
Metal push button switches can be categorized in several ways.
1. By Operating Function
| Momentary Metal Push Button Switch | Latching Metal Push Button Switch |
| A momentary switch only remains active while being pressed.When pressure is removed, the switch mechanically returns to the original position. This momentary metal push button switch is common applied for door access systems, machine controls, industrial equipment, reset buttons, intercom systems. | A latching switch(self-locking) changes state when pressed and remains in that position until pressed again. This type is often chosen when operators request a ON/OFF function. It's widely used for power control, lighting systems, equipment startup controls, control panels applications. |
| Typical contact configurations: Normally Open (NO), NO + NC |
2. By Illumination Type
| Non-Illuminated Metal Push Button Switch | Illuminated Metal Push Button Switch |
| These switches don't built in LEDs, it has merit of lower cost, simple wiring, suitable for basic control functions, and it's usually used in industrial machinery and electrical cabinets. | These illuminated metal button switches can be built-in LEDs that provide visual indication, the led color range from red, green, blue, white, yellow, orange, bi-color and RGB; These illuminated metal push button switch features with easy status indication in the dim environment. The metal push button switch with led is widely used for medical devices, audio equipment, gaming machines, smart home products, automation systems. |
3. By Mounting Hole Size
Metal push button switches are available in various panel cutout sizes.
8mm Metal Push Button Switches
12mm Metal Push Button Switches(One of the most popular sizes)
16mm Metal Push Button Switches
19mm Metal Push Button Switches
22mm Metal Push Button Switches
25mm Metal Push Button Switches
30mm Metal Push Button Switches
40mm Metal Push Button Switches
三. Features and Benefits of Metal Push Button Switches
The popularity of metal push button switches is largely due to their combination of durability, functionality, and appearance.
| 1. Mechanical Strength | Metal housings can withstand impacts and repeated operation far better than plastic alternatives. It makes them suitable for equipment exposed to heavy daily use. |
| 2. Long Service Life | Many high-quality metal push button switches offer, a longer operating life helps reduce maintenance costs and equipment downtime. |
| 3. Attractive Appearance | Metal push button switch offers a clean apperance. Designers choose metal push button switches because they enhance the overall appearance of equipment. The common finishes include stainless steel, brushed steel, polished metal and black anodized finish. |
| 4. IP68 Performance | High IP ratings help protect the switch from harsh environmental. |
| 5. LED Indication | Illuminated versions help operators quickly identify machine status. For example: green led is for running, red for stop, blue for standby, white for power indication. Visual feedback improves operating convenience and reduces user errors. |
| 6. Vandal Resistance | Many metal push button switches feature robust construction designed to resist tampering and physical abuse. |
四. Basic Specifications of Metal Push Button Switches
Understanding switch specifications helps engineers select the correct model for their application.
Mounting Size | Contact Configuration | Function | LED Voltage | Current and Voltage Rating | Protection | Terminal Type |
· 8mm · 12mm · 16mm · 19mm · 22mm · 25mm · 30mm · 40mm | 1. Normally Open (NO) Circuit closes when pressed. 2. Normally Closed (NC) Circuit opens when pressed. 3. NO + NC | · Momentary · Latching | · 3V · 5V · 6V · 12V · 24V · 110V · 220V | · 1A 24VDC · 3A 250VAC · 5A 250VAC | · IP65 · IP67 · IP68 | · Solder · Screw · Plug-in · Wire leads |
五. Common Applications of Metal Push Button Switches
Metal push button switches can be found in many industries.
| Industrial Automation | Machine start/stop functions, Production equipment, Automation systems |
| Medical Equipment | Diagnostic devices, Laboratory equipment, Medical control systems |
| Access Control Systems | Door entry systems, Security panels, Smart building controls |
| Kiosks and Self-Service Machines | Ticket machines, Payment terminals, Information kiosks |
| Transportation Equipment | Railway systems, Marine equipment, Vehicle control panels |
| Consumer Electronics | Audio equipment, Gaming systems, Smart home products, Premium appliances |
六. Why Customers Frequently Choose Metal Push Button Switches
Below features make them a practical choice for industrial and outdoor applications.
| 1. Reliability | Equipment manufacturers need components that continue performing consistently over years of operation.Metal push button switches provide dependable performance in demanding environments. |
| 2. Professional Appearance | A metal switch immediately gives equipment a higher-quality appearance compared with standard plastic alternatives. It is especially important for products exposed directly to end users. |
| 3. Long-Term Cost Savings | Although metal switches may have a higher initial cost, their longer service life often reduces maintenance and replacement expenses. For many equipment manufacturers, this results in a lower total cost of ownership. |
| 4. Wide Range of Options | Customers can select from: · Multiple mounting sizes · Various LED colors · Different voltage ratings · Momentary or latching functions · Waterproof versions · Customized symbols This flexibility allows designers to match the switch precisely to their product requirements. |
Metal push button switches have been widely used across industries for many years. These cases has proven performance and widespread availability make them a trusted solution for OEM manufacturers and system integrators.
Metal push button switch combines durability, reliability, attractive design, and excellent environmental resistance. it's available in various sizes, functions, and illumination options, they can meet different applications.
