6Pin Momentary Illuminated Switch

The 6x6mm illuminated tact switch is a miniature tactile switch that is commonly used in electronic devices. These switches are small in size and have a low profile. The 6x6mm illuminated tact switch is perfect for applications where space is limited and where a firm and audible feedback is needed.

Features of the 6x6mm Pcb Mount Led Tact Switch

The "6 - pin" in its name refers to the six electrical pins that protrude from the switch. These pins serve as the connection points to the circuit, allowing for a variety of electrical configurations. Typically, two of the pins are dedicated to the switch's momentary contact mechanism. When the switch is pressed, these pins complete an electrical circuit, triggering a specific action. Once the pressure is released, the circuit is broken, and the action stops. This momentary operation is ideal for functions such as triggering a single - shot event, like taking a photo on a camera or activating a short - term process in an industrial machine.

The remaining pins are often associated with the switch's illumination feature. The integrated illumination is what sets this switch apart, adding a visual dimension to its functionality. Light - emitting diodes (LEDs) are commonly used as the light source. These LEDs can be powered on or off independently of the switch's momentary action, enabling a wide range of uses. For example, the illumination can act as a status indicator. A steady - lit switch might signify that a device is powered on and ready for operation, while a flashing light could indicate an error or a warning condition. Different colors of illumination, such as red, green, or blue, can be used to convey specific information at a glance.

One of the key advantages of the 6 - pin Momentary Led Tact Switch is its versatility. It can be found in numerous applications, from consumer electronics to industrial control systems. In consumer devices like gaming consoles, it can be used for buttons that require both tactile feedback and visual indication, enhancing the gaming experience. In automotive interiors, these switches are used for functions like controlling the headlights or the horn, where the illumination helps drivers locate and operate the switches, even in low - light conditions.

In industrial settings, the 6 - pin LED Tactile Switch is highly valued. It can be used on control panels to initiate or stop processes, with the illumination providing operators with real - time status updates. The multiple pins also allow for more complex electrical connections, enabling the switch to interact with various sensors and other components within the system.

Installing a 6 - pin momentary illuminated switch requires a basic understanding of electrical circuits. However, with the right tools and knowledge, it can be easily integrated into a circuit board. The switch's compact size and standardized pin layout make it a convenient choice for designers and engineers looking to add functionality and visual appeal to their projects.

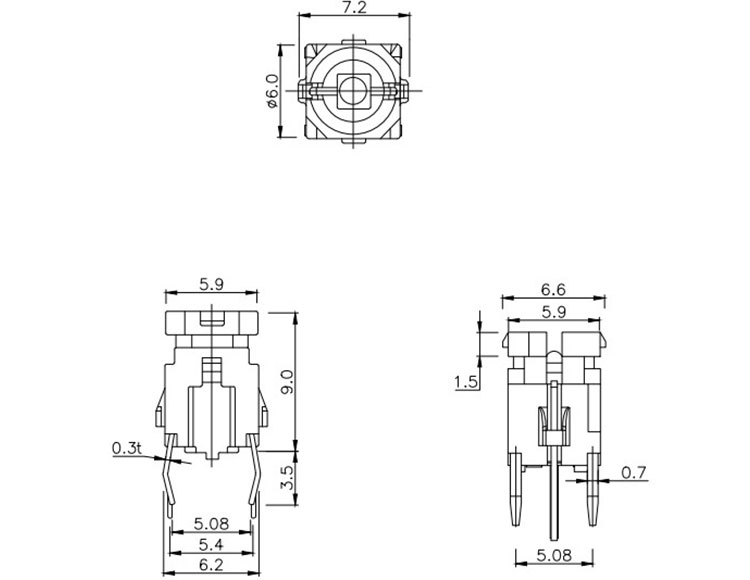

PRODUCT DIMENSION
