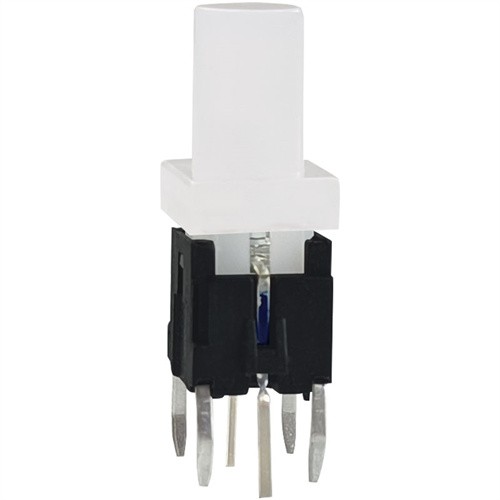

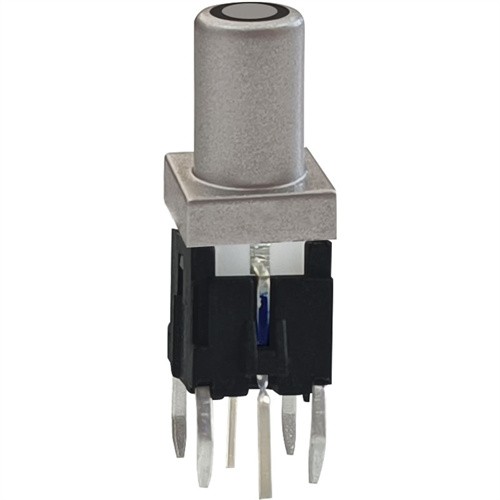

White LED Tactile Switch

An illuminated tactile switch with black high power cap is an electronic component that can be used in a wide range of applications. The switch is designed to provide tactile feedback when pressed,

EMAIL

An illuminated tactile switch with black high power cap is an electronic component that can be used in a wide range of applications. The switch is designed to provide tactile feedback when pressed, and it is also equipped with a high-power LED that can be used to indicate the switch's status. The black high-power cap is used to protect the switch from physical damage and to improve its aesthetic appeal.

The switch momentary tact with led itself is made up of several components, including a metal body, a spring-loaded plunger, and a set of contacts. When the plunger is pressed, it pushes against the contacts, creating an electrical connection. This connection can then be used to trigger a variety of different functions, such as turning on a light or activating a motor.

The most notable feature of an Tactile Switch Led Illuminated is its LED. This LED is typically located in the center of the switch and is designed to provide illumination when the switch is activated. The LED can be configured to emit a wide range of different colors, allowing it to be used in a variety of different applications.

The Mini Led Tact Switch with a black high - power cap is a specialized electrical component that combines the functionality of tactile feedback, visual indication through illumination, and the ability to handle high - power applications, all encased in a sleek black exterior.

Physical Design

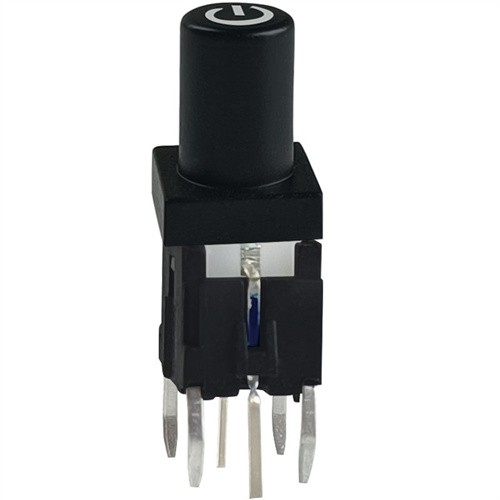

  • Black High - Power Cap: The most noticeable feature is the black cap, typically crafted from high - grade, durable materials such as heat - resistant plastic or a specialized composite. The black color gives it a sleek, professional appearance, making it suitable for a wide range of applications where aesthetics matter, from consumer electronics to industrial control panels. Its larger size and robust construction are designed to handle higher power loads, ensuring that it can withstand the electrical stress associated with high - power circuits without deforming or overheating. The surface of the cap may be smooth or have a textured finish, providing a comfortable grip for users and reducing the likelihood of accidental slips during operation.

  • Switch Body: The body of the Tactile Push Button Switch Led is usually made of a sturdy material, often a rugged plastic or metal alloy, that provides excellent protection for the internal components. It is designed to fit snugly into panels or enclosures, with precise dimensions to ensure a secure and stable installation. The body also houses the internal tactile mechanism and the illumination system.

PRODUCT PROFILE
                                         Model                   TS9-00TBW1
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   6.0*6.0*18.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
