PCB Right Angle LED Tact Switch

PCB illuminated right angle tact switches are a type of switch that is typically used in electronic devices.

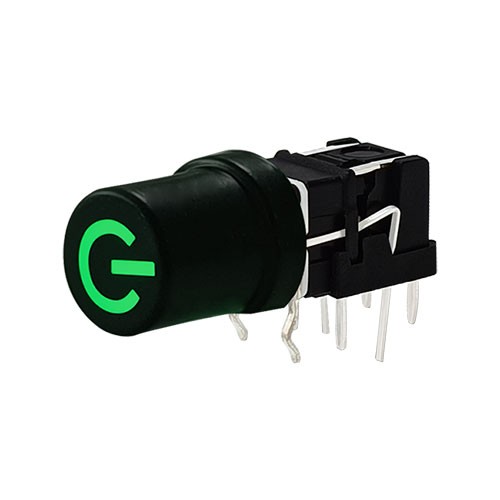

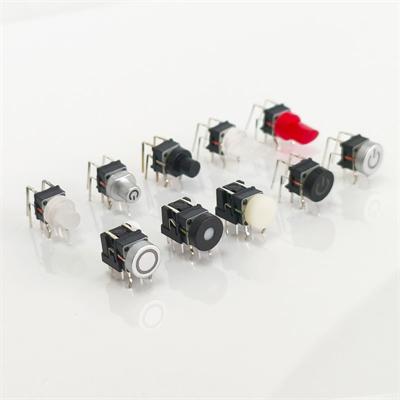

A PCB right-angle LED tact switch is a versatile component that combines the features of a tactile switch and an LED for illumination. The right-angle design allows the switch to be mounted perpendicular to the PCB, which is useful for edge-mount applications and saving space on the board.

A PCB right-angle LED tact switch is a versatile and compact component commonly used in electronic devices where space constraints or specific mounting requirements necessitate a side-accessible switch. This type of switch combines tactile feedback with LED illumination, making it ideal for user interfaces that need both functional and visual indicators.

Components of a Right-Angle LED Tact Switch

  1. Tact Switch Mechanism: A small, momentary switch that provides tactile feedback when pressed.

  2. LED: An integrated LED for illumination, usually positioned next to or around the switch.

  3. Cap: A translucent or transparent cover that allows the light from the LED to shine through.

  4. Right-Angle Terminals: Leads that extend at a right angle, allowing the switch to be mounted perpendicularly to the PCB.

  • Operating Voltage: 5V

  • LED Color: Red, green, blue, etc.

  • Actuation Force: 160g, 250g, etc.

  • Switch Life: 100,000 cycles

  • Mounting Type: Through-hole or surface mount

                                         Model                   TS17-8B55BG1
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS
