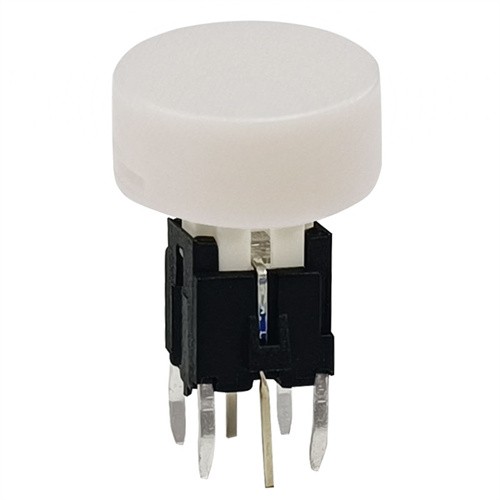

Illuminated Micro Switch

The illuminated tact switch with 13mm power cap is designed to handle higher power loads than the standard illuminated tact switch. This is made possible by the use of larger diameter PCB pins and the higher-quality gold plating of the contacts. The larger pins allow for the passage of higher levels of current without being damaged or deformed. The gold contacts improve the conductivity and reduce the resistance of the electrical circuitry.

Another characteristic of the illuminated tact switch with 13mm power cap is its relatively longer lifespan compared to other tact switch types. The switch has been designed to support up to 1,000,000 cycles, which means that it can withstand 1,000,000 presses before the switch becomes nonfunctional. The switch's longer lifespan is particularly essential for applications that require frequent and long-term use, such as industrial machines or office equipment.

The design of the illuminated tact switch with 13mm power cap also incorporates several mechanical improvements. The switch housing is made of high-quality materials that are both durable and resistant to wear and tear. The switch's base is transparent, allowing the LEDs to provide bright and clear illumination. Additionally, the switch's actuator is designed to have a high actuation force, ensuring a positive tactile feedback to the user.

The switch also features low contact resistance, which means that the switch can handle high-frequency switching, making it an ideal candidate for a variety of applications such as in audio systems, RF signal detection, and other sensitive electronic circuits.

In conclusion, the illuminated tact switch with a 13mm power cap provides an improved user interface experience by offering tactile and visual feedback to the user. The switch's long lifespan, increased power capabilities, and mechanical improvements make it ideal for use in a wide range of applications, such as home appliances, office equipment, and industrial machines. With its high-quality materials, low contact resistance, and improved mechanical design, the illuminated tact switch with 13mm power cap stands out as a reliable and durable switch that can meet the needs of many different electronic applications.

An illuminated tact switch with a 13 - mm power cap is a specific type of tactile switch that features an integrated lighting function and is equipped with a power - indicating cap with a diameter of 13 mm. Here is a detailed introduction:

Structure and Characteristics2

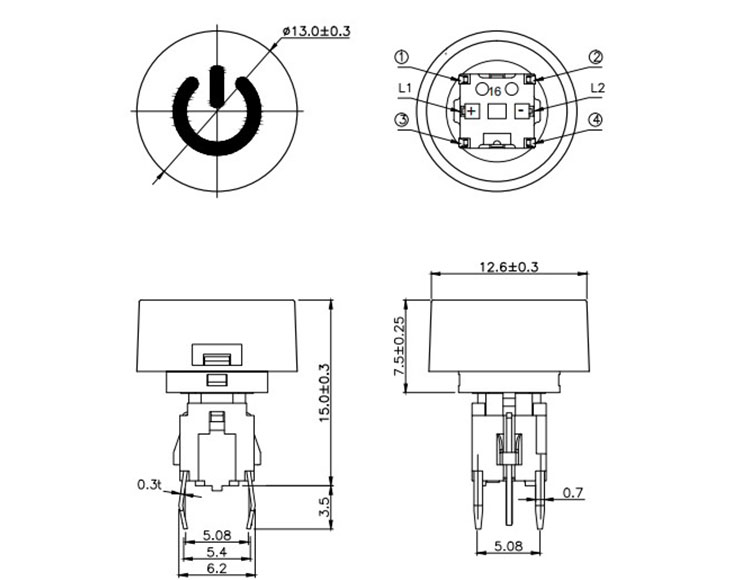

• Power Cap: The 13 - mm - diameter power cap is the most prominent feature of this switch. Usually made of high - quality plastic or other durable materials, it is designed with a power symbol or other markings to clearly indicate the switch's function. The cap is firmly attached to the switch actuator and moves with it when the switch is pressed.

• Illumination System: Similar to a regular illuminated tact switch, it incorporates one or more light - emitting diodes (LEDs) as the light source. The LEDs are typically located at the bottom or around the switch housing and emit light upwards through the transparent or semi - transparent power cap when the switch is activated or in a specific state. This provides clear visual feedback to users, making it easy to identify the switch's status, especially in low - light environments.

• Tactile Switch Mechanism: It has a standard tactile switch structure, including an actuator, contacts, and a dome. When the user presses the power cap, the actuator exerts force on the dome, causing the contacts to close and complete the electrical circuit. This action provides a distinct tactile feedback, allowing the user to clearly feel the switch's actuation. Once the pressure is released, the dome and contacts return to their original positions, opening the circuit.
