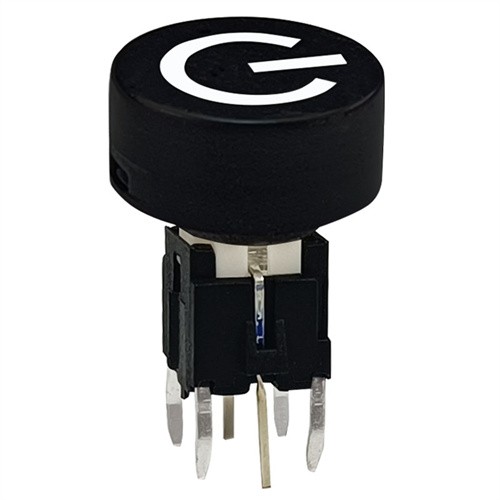

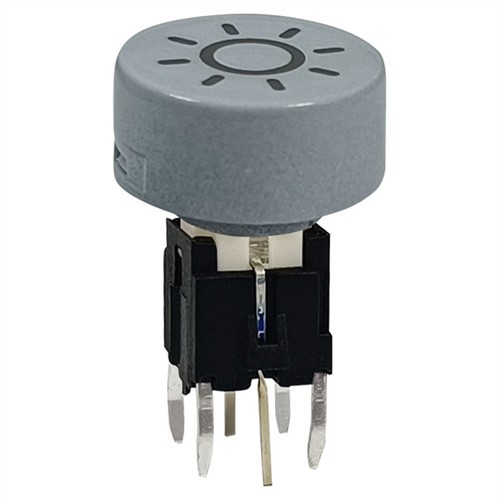

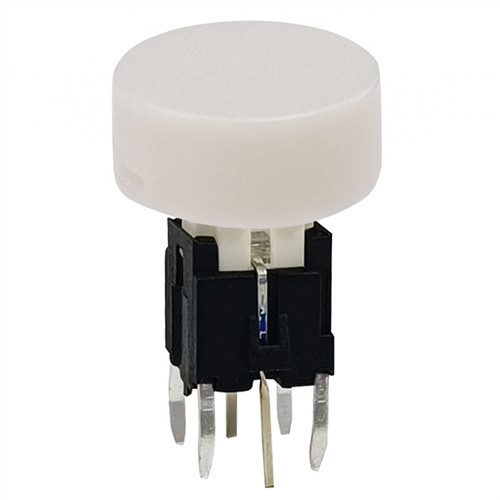

Illuminated Tact Micro Switch

Illuminated tact switches are commonly used in electronic devices for user-interface, such as remote controllers, gaming equipment, and digital appliances.

EMAIL

Illuminated tact switches are commonly used in electronic devices for user-interface, such as remote controllers, gaming equipment, and digital appliances. They are designed to provide a tactile indication with audible feedback when a user presses the switch. The illuminated tact switch with 13mm power cap is a relatively newer version of the standard illuminated tact switch, with improved power capabilities.

The illuminated tact switch typically consists of four main components - the actuator, the contacts, the dome, and the LEDs. The actuator is the part that users press to activate the switch. The contacts are the internal electrical circuits that respond to the pressing force, and typically consist of a metal pad on the printed circuit board (PCB) and a metal dome on the switch housing. The dome provides the tactile feedback and is responsible for triggering the contact. The LEDs are used to provide visual feedback when the switch is activate.

PRODUCT PROFILE
                                         Model                   TS10-0013BW1
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   6.0*6.0*9.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
