Illuminated Momentary Reset Switch

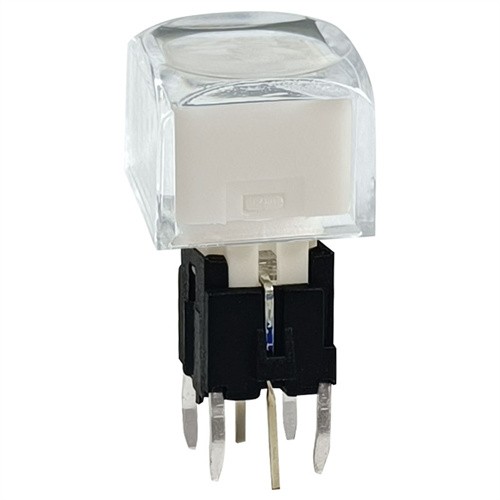

An illuminated tact switch is a type of switch that combines the functions of a tactile switch and an LED indicator light. This particular model of illuminated tact switch has a clear cap that measures 11mm by 11mm. The switch itself is designed to provide a tactile feedback when pressed, allowing the user to feel when the switch has been activated.

The clear cap of this illuminated tact switch allows the LED indicator light to be clearly visible when the switch is activated. The LED light is typically used to indicate the status of a device or system. For example, the LED might be used to show that a device is turned on, or that a particular function has been activated.

The design of this illuminated tact switch allows it to be used in a wide range of applications. It can be used in consumer electronics devices, such as audio equipment, gaming consoles, and home appliances. It can also be used in industrial applications, such as machinery control panels or monitoring systems. The switch is designed to be durable and reliable, with a long lifespan and minimal maintenance requirements.

An illuminated momentary reset switch is a specialized electrical switch that combines the features of momentary operation, reset functionality, and integrated illumination. This type of switch is designed to provide users with both tactile feedback and visual indication, making it a valuable component in a wide range of electronic devices and systems.

Physical Design and Structure

The switch typically consists of a durable housing, often made from materials such as high-quality plastic or metal. The housing serves to protect the internal components and provides a secure mounting option for installation in various applications. The switch actuator, which is the part that users interact with, is usually designed to be easily pressed and has a distinct tactile feel.

At the heart of the switch is the momentary mechanism. When the actuator is pressed, it makes electrical contact, completing a circuit. However, unlike a latching switch, the contact is only maintained as long as pressure is applied to the actuator. Once the pressure is released, the switch automatically returns to its original, open position, breaking the circuit. This momentary action is ideal for applications where a short-lived electrical connection is required, such as triggering a single operation or sending a one-time signal.

The reset functionality of the switch allows it to be returned to a known or default state. In some cases, this may involve physically resetting the switch mechanism, while in others, it could be achieved through an electrical signal or software command. The reset feature is useful for ensuring that the switch and the associated system start from a consistent state, especially after an error or abnormal operation.

The illumination aspect of the switch is provided by an integrated light source, typically one or more light-emitting diodes (LEDs). The LEDs are strategically placed within the switch housing to provide a clear and visible light output through the switch actuator or a surrounding indicator area. The light can be in various colors, such as red, green, blue, or white, depending on the specific application requirements. A light-diffusing mechanism may be used to ensure an even distribution of light, creating a consistent and bright glow.
