Illuminated Right Angle Switch

The design of illuminated right angle tact switches includes a button that is mounted on a printed circuit board (PCB).

EMAIL

The design of illuminated right angle tact switches includes a button that is mounted on a printed circuit board (PCB). The button has a conductive dome underneath it that is used to make contact with the PCB. There are also four legs on the switch that are used to mount it onto the board. These legs are typically bent at a 90-degree angle to allow for right-angle mounting.

The illuminated aspect of the switch is achieved through the use of an LED that is mounted within the switch. The LED is typically placed between the button and the PCB, and when the button is pressed, the LED illuminates. This provides visual feedback to the user that the switch has been activated.

There are several factors to consider when selecting an illuminated right angle tact switch for a particular application. These include:

1. Electrical specifications: The switch must meet the required electrical specifications for the application, including voltage, current, and resistance.

2. Environmental conditions: The switch must be able to withstand the environmental conditions of the application, including temperature, humidity, and vibration.

3. Mounting style: The switch must be compatible with the mounting style of the PCB and the overall design of the device.

4. Operating force: The switch must have the correct operating force for the application, which is typically measured in grams.

5. Illumination color: The switch must provide the proper illumination color for the application, which can be red, green, blue, yellow, or white.

PRODUCT PROFILE

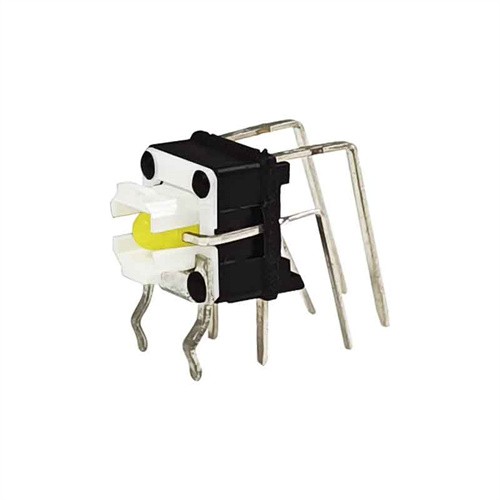

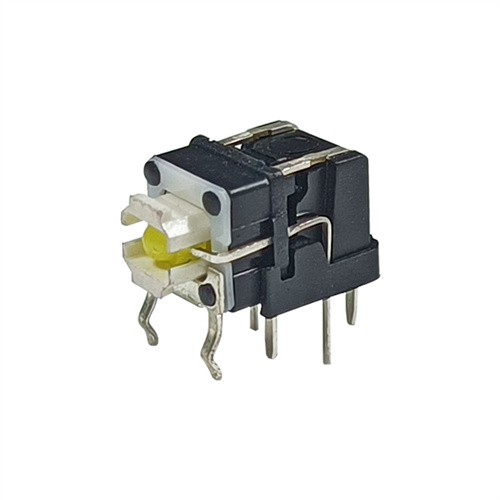

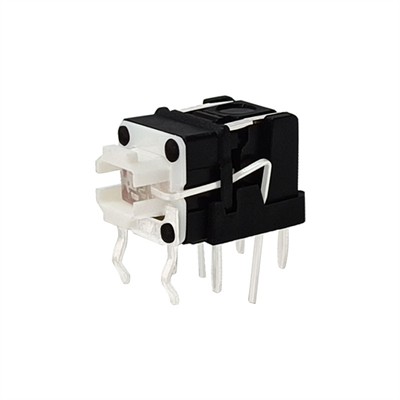

                                         Model                   TS17-8B00R
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

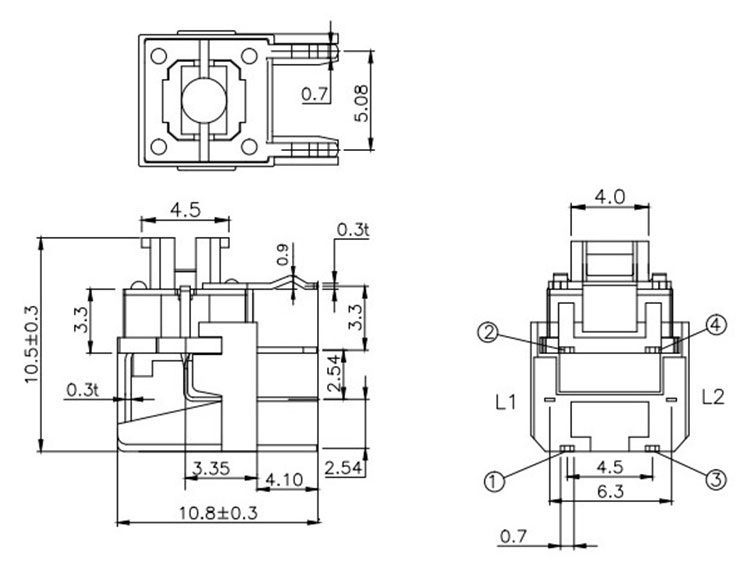

PRODUCT DIMENSION
