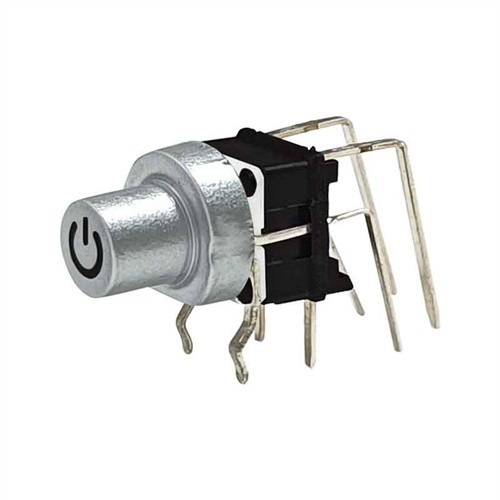

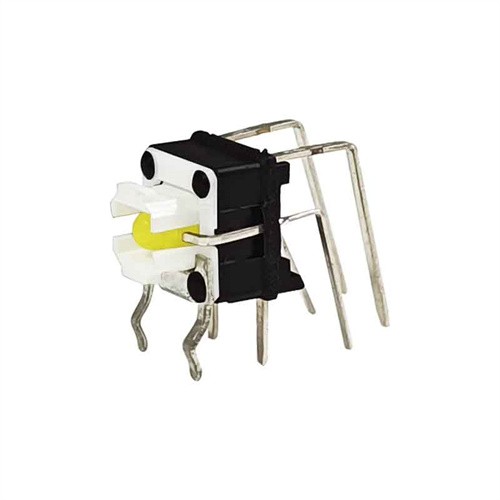

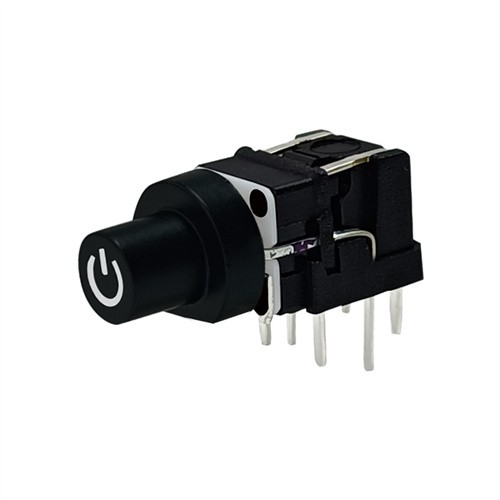

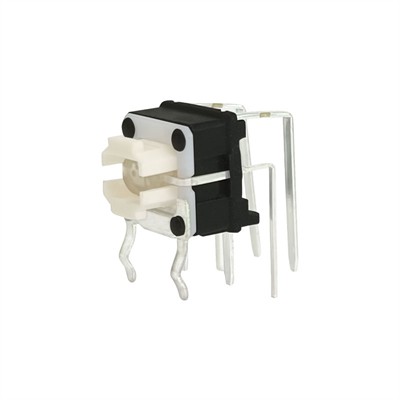

Illuminated Right Angle Tact Switch

PCB illuminated right angle tact switches are a type of switch that is typically used in electronic devices.

EMAIL

PCB illuminated right angle tact switches are a type of switch that is typically used in electronic devices. These switches are designed to have a low profile and take up minimal space on a printed circuit board (PCB). The switches are used to provide tactile feedback when a user interacts with an electronic device.

The primary objective of an illuminated right angle tact switch is to provide tactile feedback and control to the user while also being able to visually indicate status or action. Illuminated right angle tact switches can be used in a wide range of applications, including consumer electronics, automotive, industrial automation, and medical devices.

Illuminated right angle tact switches combine tactile feedback with integrated LED illumination, offering enhanced user interaction and control in electronic devices. Understanding their key features and applications is essential for selecting the right switches to meet the requirements of specific designs or projects.

Illuminated right angle tact switches are designed with an actuation mechanism oriented perpendicular to the surface of the printed circuit board (PCB). This right angle configuration allows for convenient actuation even in confined spaces, making them suitable for applications with spatial constraints.

PRODUCT PROFILE
                                         Model                   TS17-0000R
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

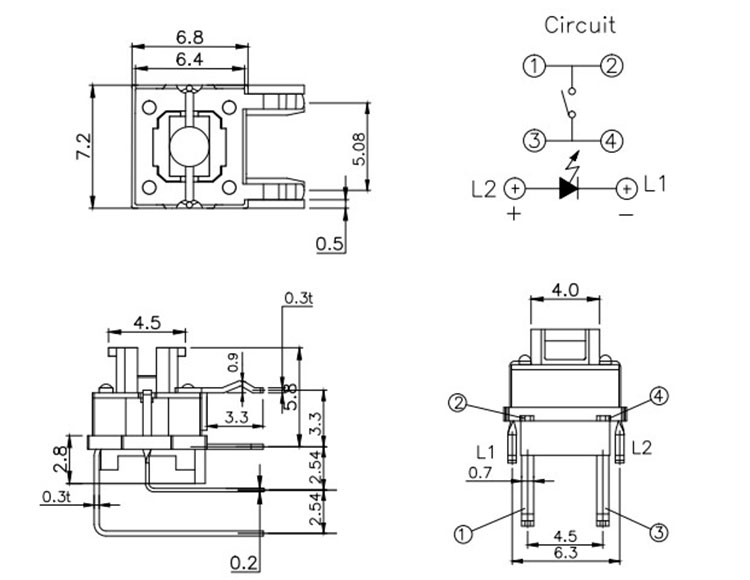

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
