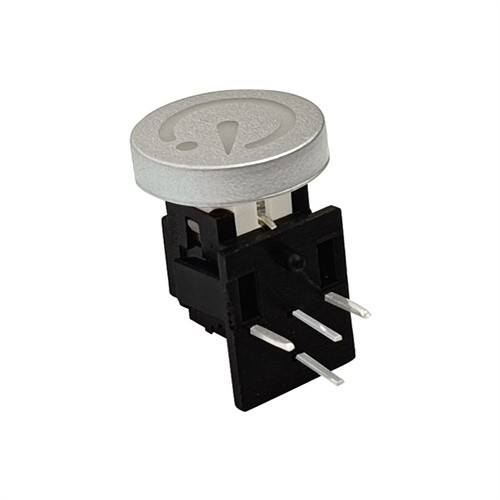

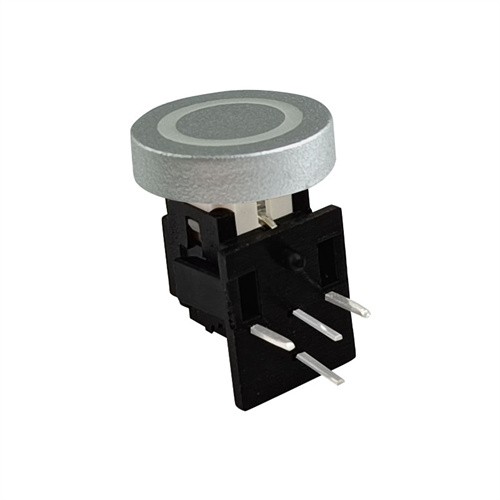

Mini Right Angle Illuminated Switch

A momentary right-angle illuminated switch with a circle cap is a type of push-button switch that features a circular cap that is illuminated when the switch is activated.

EMAIL

A momentary right-angle illuminated switch with a circle cap is a type of push-button switch that features a circular cap that is illuminated when the switch is activated. This type of switch is typically used in a variety of applications where the operator needs to quickly and easily control various electrical functions. Some common applications for this type of switch include control panels, machinery, and automotive systems.

The switch's right-angle design allows it to be mounted in tight spaces, making it ideal for use in cramped equipment, while the momentary action ensures that it only stays active when the operator holds the switch in the down position. This prevents accidental activation of the switch, which is especially important in applications where safety is a concern.

The switch's circular cap is an important feature because it makes it easy for the operator to find the switch and press it, even in low light conditions. The cap is usually made of a durable material such as plastic or brass, and it may be colored or backlit with an LED to improve visibility.

A mini right angle illuminated switch is a compact electronic component designed to provide tactile feedback and visual indication of its operation while conserving space on the printed circuit board (PCB).

Similar to standard right-angle switches, mini right angle illuminated switches feature an actuation mechanism that is oriented perpendicular to the surface of the PCB. This configuration allows for easy actuation and conserves space, making it suitable for applications with spatial constraints.
PRODUCT PROFILE
                                         Model                   TS20-007AU6
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   6.0*6.0*mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
