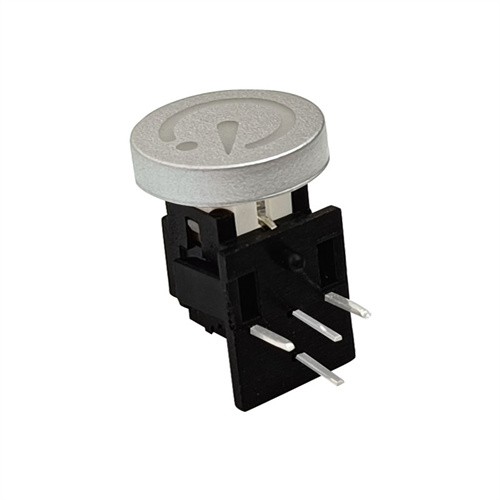

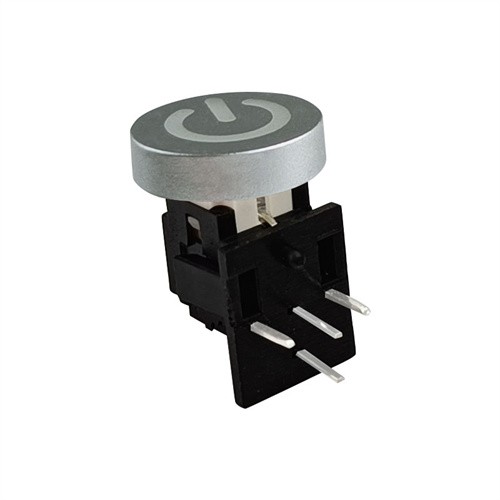

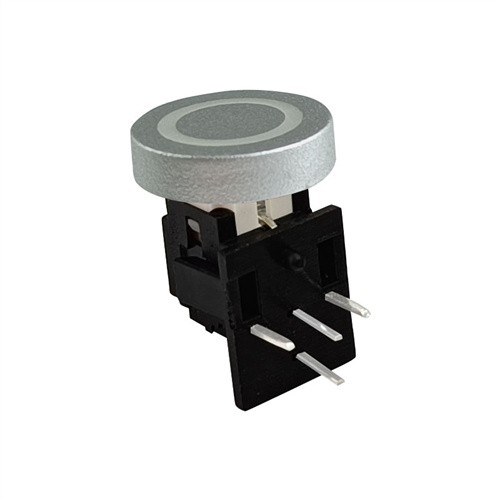

Right-angled Illuminated LED Button

The right angle illuminated switch button with dia 10mm cap is a popular choice among electronic designers and manufacturers. It is known for its durability, reliability, and ease of use. It is widely used in a variety of electronic devices and is easy to install.

EMAIL

The right angle illuminated switch button with dia 10mm cap is a popular choice among electronic designers and manufacturers. It is known for its durability, reliability, and ease of use. It is widely used in a variety of electronic devices and is easy to install. If you are looking for a high-quality switch button for your electronic device, the right angle illuminated switch button with round 8mm cap is an excellent choice.

The right angle illuminated switch button with diameter 10mm cap is made up of several components. These include:

1. Switch body: The switch body is made of high-quality plastic material, which is durable and resistant to wear and tear.

2. Actuator: The actuator is the part of the switch button that is pressed to turn the device on or off.

3. Contacts: The contacts are the components inside the switch button that connect and disconnect when the device is turned on or off.

4. Illumination system: The illumination system is the LED light that is inside the switch button and illuminates when the device is turned on.

The right angle illuminated switch button with 10mm cap is easy to install. It is designed with a right angle mounting system, which makes it easy to fit into tight spaces. To install the switch button, follow these steps:

1. Locate the area where the switch button will be installed.

2. Make sure that the switch button will fit into the space.

3. Use a drill to create a hole in the panel where the switch button will be installed.

4. Place the switch button into the hole.

5. Secure the switch button to the panel using the mounting hardware provided.

6. Connect the wires to the contacts on the switch button.

7. Test the switch button to make sure that it is working properly.

PRODUCT PROFILE
                                         Model                   TS20-007AU1
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   6.0*6.0*mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
