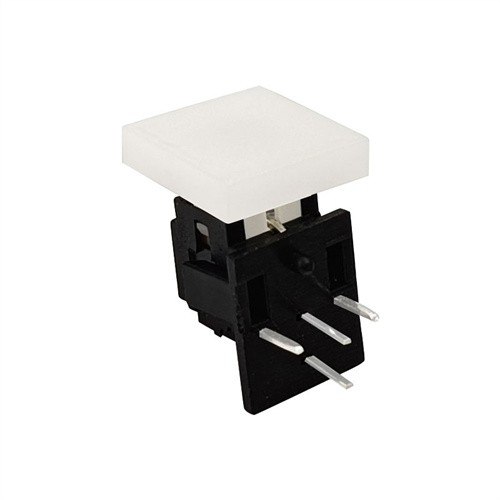

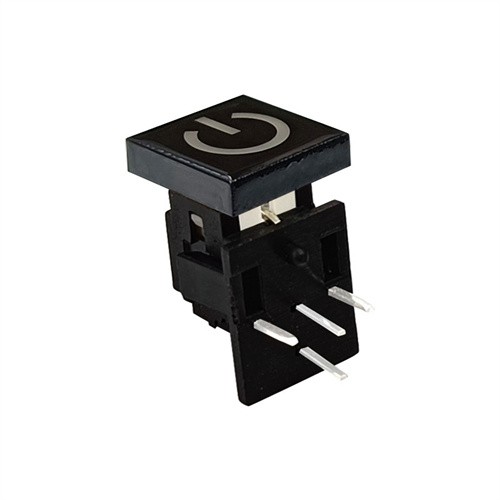

Right-angle Illuminated Switch Button

The right-angle illuminated switch button with a square 10mm cap is a versatile and durable device that is suitable for a wide range of applications. Its right-angle design allows it to be installed in tight spaces, while its illuminated feature ensures that it is easily visible in low-light conditions. The switch button has a long lifespan and can handle up to 5 amps of current and 250 volts of alternating current. With its customizable cap, the switch button can be tailored to match the style of the device it's installed in. Whether you're building industrial machinery, automotive systems, or household appliances, the right-angle illuminated switch button with a square 10mm cap is a reliable and high-quality option.

The switch button has a square 10mm cap, which is the part of the switch that is visible on the outside of the device. This cap is made of high-quality materials like stainless steel, brass, aluminum, or plastic, which guarantees durability and resistance to harsh environmental conditions. The cap can be customized with different colors, shapes, or logos to match the style of the device it's installed in.

The switch button has a standard rating of 5A/250VAC, which means that it can handle up to 5 amps of current and 250 volts of alternating current. This rating is suitable for most applications, including industrial, automotive, and household applications. The switch button also has a long lifespan, with an average of 50,000 hours of use. This ensures that the switch will last for many years without needing replacement.

Installation of the switch button is straightforward, with two types of mounting options available. The first option is the panel-mounting option, which involves mounting the switch button on a panel using a threaded nut. This option is suitable for applications where the switch needs to be installed on a surface that is perpendicular to the plane of the panel. The second option is the PCB-mounting option, which involves soldering the switch button directly onto a printed circuit board. This option is suitable for applications where the switch needs to be mounted horizontally or vertically on a PCB.

One of the advantages of the right-angle illuminated switch button with a square 10mm cap is its versatility. It can be used in a wide range of applications.

The switch button incorporates illumination, often through LEDs (Light Emitting Diodes), that light up upon activation. This provides visual feedback to the user, indicating the switch's status or function.

Right-angle illuminated switch buttons offer angled actuation combined with integrated illumination, making them suitable for various applications where vertical space is limited or a particular orientation is required, and visual feedback is essential

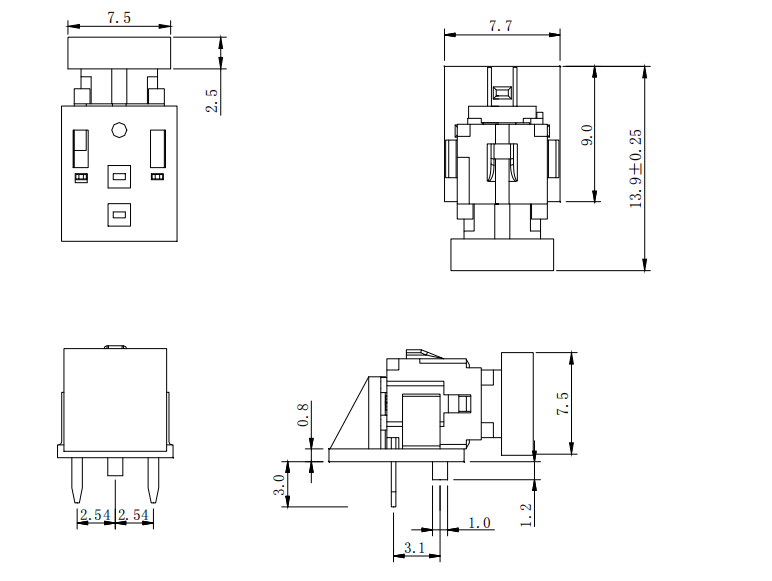

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
