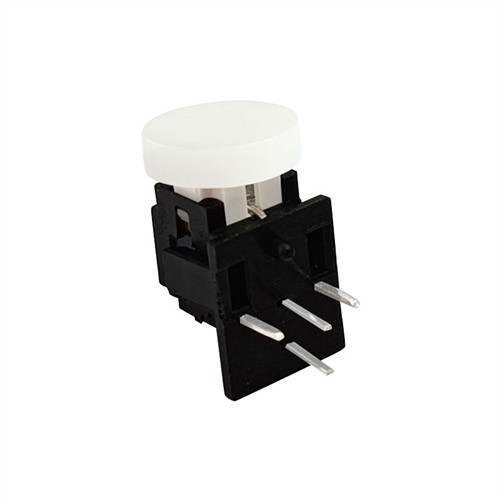

Right-angle Illuminated Button

An illuminated switch button is an important component of most electronic devices.


An illuminated switch button is an important component of most electronic devices. It is used to turn the device on or off, and to indicate its status. There are many types of switch buttons available on the market, but the right angle illuminated switch button with round 8mm cap is one of the most popular.

A right-angle illuminated button is an electronic component designed to provide both tactile feedback and visual indication of its operation. This type of button features an actuation mechanism that is oriented at a right angle to the surface of the printed circuit board (PCB), allowing for easy actuation in applications where vertical space is limited or a particular orientation is required.

The distinguishing feature of a right-angle illuminated button is its actuation mechanism, which is positioned perpendicular to the PCB surface. This design allows for the button to be mounted in a way that conserves space and provides a convenient angle for user interaction.


The right angle illuminated switch button with round 8mm cap has several key features that make it a popular choice among electronic designers and manufacturers. These features include:

1. Compact design: The switch button is designed to be small and compact, which makes it easy to fit into a wide range of devices.

2. Right angle mounting: The switch button is designed with a right angle mounting system, which makes it easy to install in tight spaces.

3. Illuminated: The switch button is equipped with an LED light, which illuminates when the device is turned on.

4. Round 8mm cap: The switch button has a round cap with a diameter of 8mm, which provides a tactile feel and easy operation.

5. Long life: The switch button is designed to last for a long time, even with constant use.

                                         Model                   TS20-0025BU1
                                         Product Item                   Illuminated Tact Switch
                                         Switch Size                   6.0*6.0*mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.





We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.



Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
