Right-angled Illuminated Button

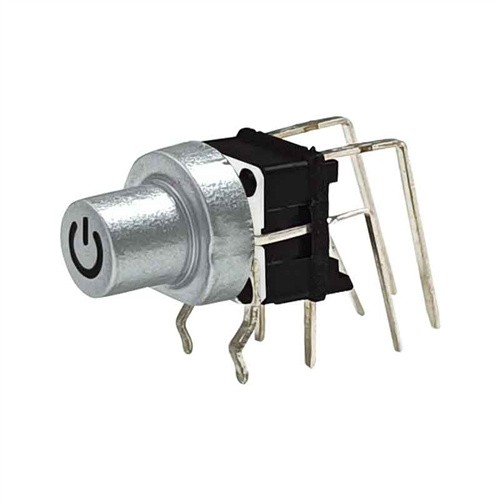

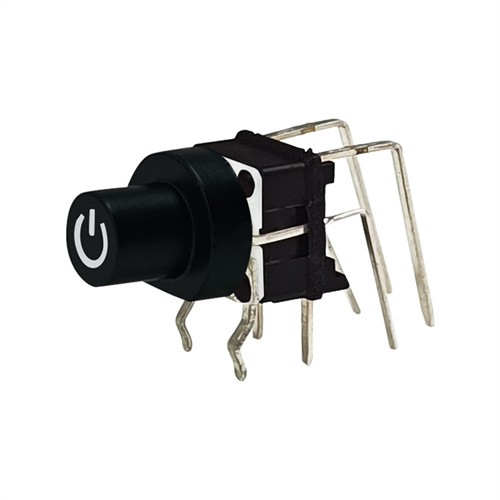

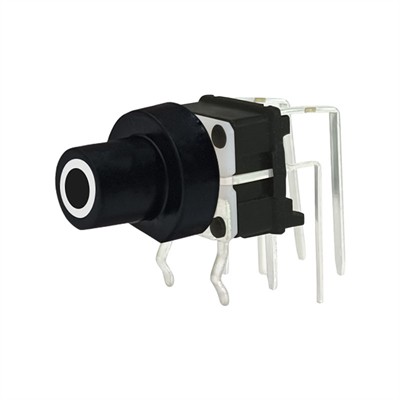

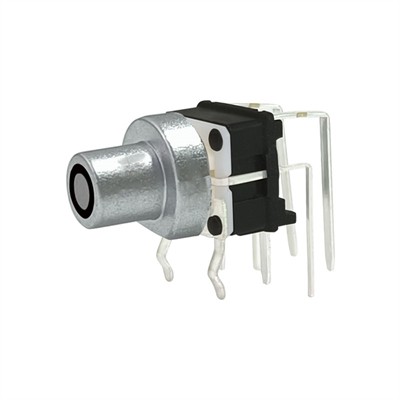

The PCB mount illuminated right-angle tact button with a round cap is designed to be mounted directly onto a printed circuit board (PCB).

EMAIL

The PCB mount illuminated right-angle tact button with a round cap is designed to be mounted directly onto a printed circuit board (PCB). There are several features that make the PCB mount illuminated right-angle tact button with a round cap a popular choice for electronic designers. Here are some of the key advantages of using this type of switch:

Right-angled illuminated buttons are electronic components designed to offer tactile feedback, visual indication, and convenient integration onto a printed circuit board (PCB) at a right-angle orientation. These buttons are engineered to enhance user interaction in various electronic devices, especially those with spatial constraints or specific ergonomic requirements.

The buttons are configured at a right angle to the surface of the PCB, allowing for convenient actuation even in confined spaces. This design facilitates ergonomic interaction with the button and allows for efficient utilization of available space on the PCB.

1. Space-saving design - The PCB mount illuminated right-angle tact button with a round cap is designed to be mounted directly onto a PCB. This means that it takes up very little space in the final product, which is important in compact electronic devices.

2. Easy to use - The round cap on the top of the button makes it easy for users to locate and press the button. The illuminated feature allows users to easily identify the button in low-light conditions, which can be particularly useful in devices that are used in dimly lit environments.

3. Low profile - The low profile of this switch means that it sits flush with the surface of the PCB. This is important in devices where the switch needs to be hidden or protected from accidental activation.

4. High durability - The PCB mount illuminated right-angle tact button with a round cap is designed to withstand repeated use. This means that it is ideal for devices where the switch will be used frequently.

5. Cost-effective - This type of switch is relatively inexpensive, which makes it a popular choice for electronic designers who need to keep costs low.

PRODUCT PROFILE
                                         Model                   TS17-00EAW1
                                         Product Item                   Illuminated Surface Mount Tact Switch
                                         Switch Size                   7.0*7.0mm
                                         LED Options                   White/ Red/Blue/Yellow/Green/ bi-color
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   Through Hole
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
