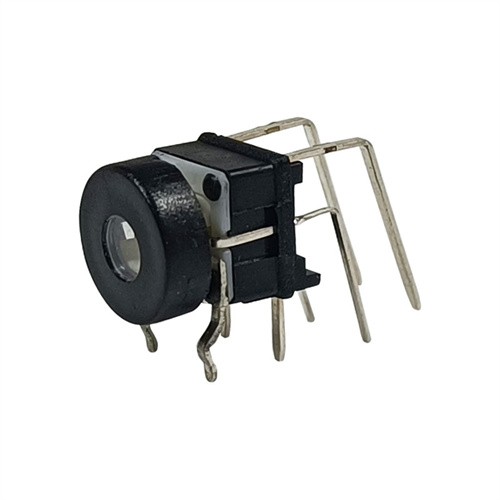

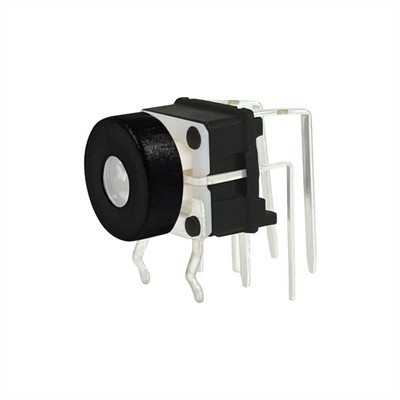

Right-angled PCB Button

When selecting a PCB mount illuminated right-angle tact button with a round cap, there are several factors to consider. Here are some of the most important considerations:

A right-angled PCB button is an electronic component designed to provide tactile feedback, visual indication, and convenient integration onto a printed circuit board (PCB). These buttons are configured at a right-angle orientation, making them suitable for applications where space is limited or where a specific ergonomic design is required.

Right-angled PCB buttons offer tactile feedback similar to traditional tactile switches. This feedback confirms the activation of the button, ensuring reliable operation and user satisfaction. The tactile sensation provides users with assurance that their input has been registered.

In conclusion, the PCB mount illuminated right-angle tact button with a round cap is a versatile electronic switch that is used in a wide range of electronic devices. This type of switch is particularly useful in devices where space is limited, and it is important to have a low profile switch that is easy to use and durable. When selecting a PCB mount illuminated right-angle tact button with a round cap, it is important to consider factors such as the operating force, travel distance, illumination color, actuation type, and electrical rating to ensure that the switch meets the needs of the device.

PRODUCT PROFILE
Model	TS17-00EAW1
Product Item	Illuminated Surface Mount Tact Switch
Switch Size	7.0*7.0mm
LED Options	White/ Red/Blue/Yellow/Green/ bi-color
Actuation Force	250gf
Function	Momentary
Terminal Style	Through Hole
Payment	T/T 100% in advance
Delivery	15-20 workdays
Shippment	DHL/ FedEx /UPS

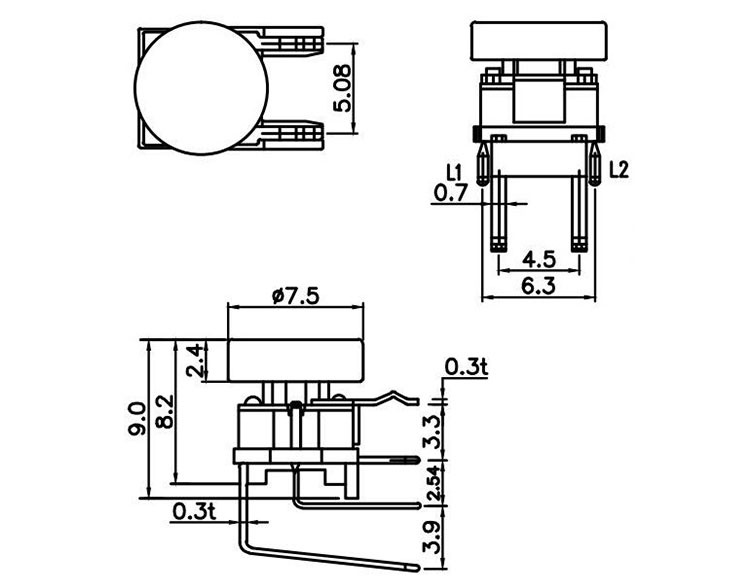

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
