Right Angled Tact Switch With LED

A tact switch is an electronic component that is designed to provide tactile feedback with a clicking sound when pressed. It is commonly used in many electronic devices such as TV remotes, game controllers, and keyboards. The latest development in this field is the right-angled illuminated tact switch with a black cap. This tact switch is a highly specialized component that is mainly used in illuminated applications such as control panels, dashboard displays, and ambient lighting.

The right-angled illuminated tact switch with a black cap is a unique device that offers several advantages over traditional tact switches. Firstly, it has a right-angled design that allows it to be mounted to a PCB at a right angle to the board's surface. This makes it ideal for use in compact electronic devices where space is limited. It also simplifies the design process by eliminating the need for additional components such as brackets or supporting structures.

Secondly, the switch has an illuminated feature that allows it to light up when activated. This makes it highly visible in low-light situations and makes it easy to find and use. The illumination is achieved by the use of an LED that is located inside the switch. The LED can be of different colors, depending on the application.

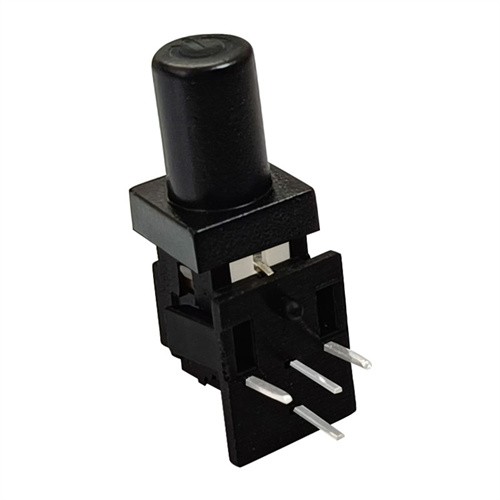

Thirdly, the switch has a black cap that not only provides a sleek and modern look but also enhances tactile feedback. The black cap is made of a special material that has a slightly rough texture, which gives the user a better grip and makes it easier to press.

The right-angled illuminated tact switch with a black cap has several key specifications that make it suitable for a wide range of applications. These specifications include:

1. Operating force - This refers to the amount of force required to press the switch. Different types of switches have different operating forces, and the right choice depends on the application. The right-angled illuminated tact switch with a black cap has an operating force of 1.6N, which is ideal for most applications.

2. Operating life - This refers to the number of times the switch can be pressed before it fails. The right-angled illuminated tact switch with a black cap has an operating life of 500,000 cycles, which means it can withstand extensive use before needing replacement.

3. Contact resistance - This refers to the resistance between the switch contacts when closed. A low contact resistance means that there is a more reliable connection, which is important in electronic devices. The right-angled illuminated tact switch with a black cap has a contact resistance of 100mΩ, which ensures a reliable connection.

4. Insulation resistance - This refers to the resistance between the switch contacts when open. A high insulation resistance means that there is no leakage of current when the switch is not being used. The right-angled illuminated tact switch with a black cap has an insulation resistance of 100MΩ, which ensures no leakage of current.

In conclusion, the right-angled illuminated tact switch with a black cap is a highly specialized component that offers several advantages over traditional tact switches. Its right-angled design, illuminated feature, and black cap make it suitable for a wide range of applications, especially those that require compactness, visibility, and enhanced tactile feedback. Its key specifications make it a reliable component that can withstand extensive use without failing, making it a top choice for many electronic device designers.

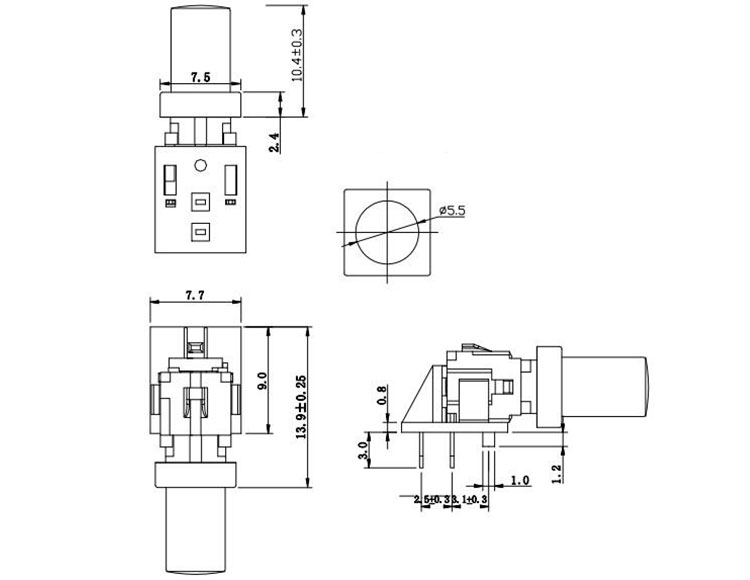

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
