Shield DC power jack

The benefits of using a shield DC power jack are numerous. For one, it significantly improves the signal quality of the power supply. In sensitive electronic equipment like audio - visual devices, where even minor electrical disturbances can cause noise or distortion, the shielded jack ensures a clean and stable power flow, resulting in superior sound and image quality. It also enhances the reliability of the connection. The metallic shield offers physical protection to the internal components, safeguarding them from mechanical damage due to impacts or vibrations. This extends the lifespan of the jack and reduces the need for frequent replacements. Additionally, in many industries, electronic devices are required to meet strict electromagnetic compatibility (EMC) standards. The shield DC power jack helps manufacturers ensure that their products comply with these regulations, allowing for seamless market entry and avoiding potential legal and regulatory issues.

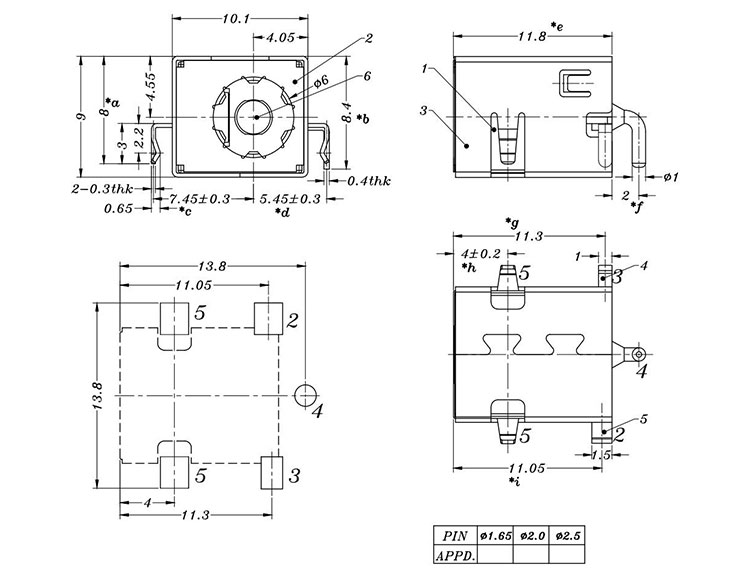

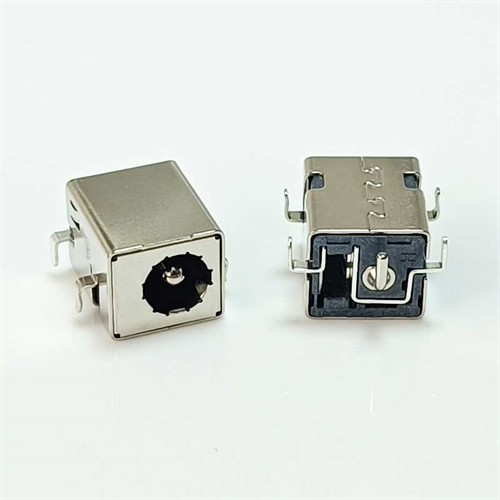

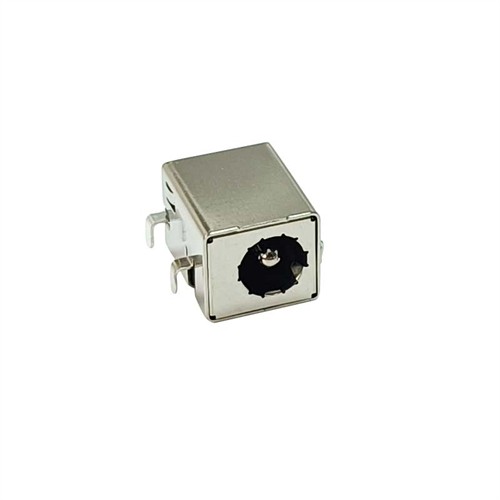

The shield DC power jack is a specialized power connection component designed to block electromagnetic interference (EMI) and radio frequency interference (RFI)—critical for protecting sensitive electronics from signal disruption, a gap regular DC power jacks often fail to address. Its shielding capability is built into the structure, making it indispensable for devices where stable power transmission and EMC (Electromagnetic Compatibility) compliance are non-negotiable.

At its core, the jack uses a conductive shielding layer—typically a copper, nickel-plated brass, or stainless steel shell—surrounding the internal power contacts. This shell is grounded (either to the PCB or equipment chassis), creating a “Faraday cage” that absorbs or redirects external EMI/RFI (e.g., from nearby motors, wireless devices, or power cables) and prevents internal interference from leaking out. The housing may also include EMI gaskets or conductive coatings for full coverage, while the contacts (brass or phosphor bronze) maintain low resistance to avoid power loss.
